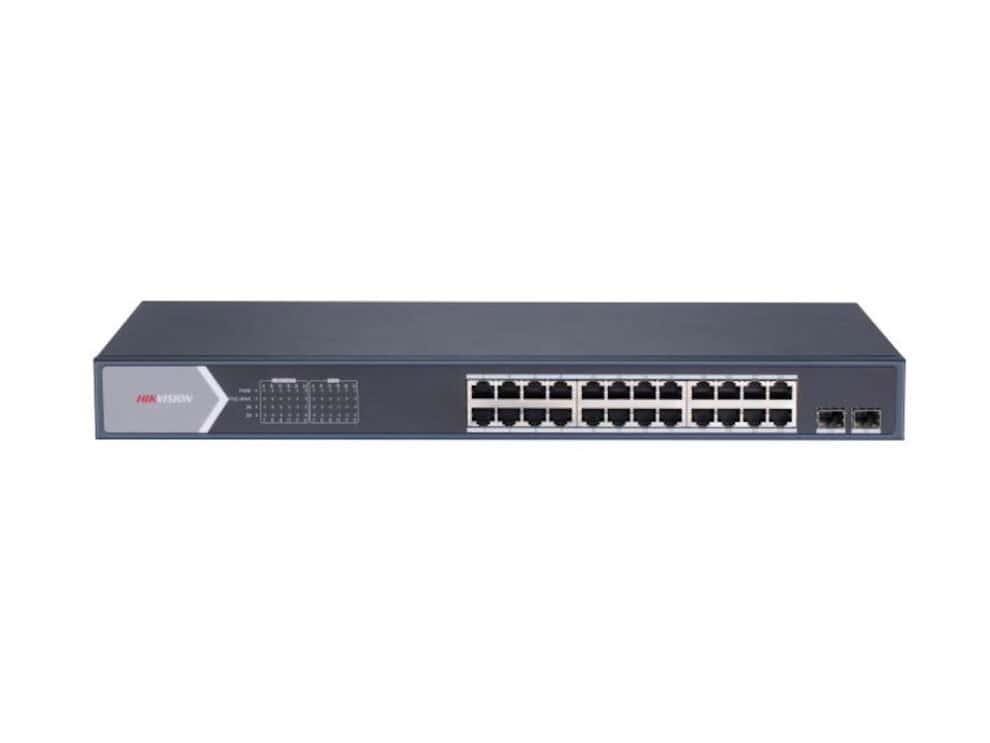

title: Hikvision 24 Port Gigabit Smart POE Switch
date: 2024-09-02T16:58:57Z
modified: 2026-05-19T18:03:54Z
permalink: "https://tech.co.za/product/hikvision-24-port-gigabit-smart-poe-switch/"
type: product
status: publish
excerpt: Hikvision 24 Port Gigabit Smart POE Switch
wpid: 501206
product_brand:
  - Hikvision
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
  - Switches
featured_image: "https://tech.co.za/wp-content/uploads/2024/09/Gigabit-Smart-POE-Switch.jpg"
---

**General**
Shell: Metal material
Net Weight: 2.975 kg (6.56 lb)
Gross Weight: 3.535 kg (7.79 lb)
Dimensions (W × H × D): 440.00 mm × 44.00 mm × 221.00 mm (17.32” × 1.73” × 8.70”)
Operating Temperature: 0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature: -40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity: 5% to 95% (no condensation)
Relative Humidity: 5% to 95% (no condensation)
Power Supply: 100 to 240 VAC, 50/60 Hz, Max. 6.3 A
Installation Mode: Rack (equipped with mounting ears)
Max. Power Consumption: 400 W
Power Consumption in Idle: 30 W
Surge Protection: 6 KV

**Network Parameters**
Ports: 24 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Address Table: 8 K
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
Internal Cache: 4.1 Mbits

**PoE Power Supply**
PoE Standard: IEEE 802.3af,IEEE 802.3at
PoE Power Pin: End-span: 1/2(+), 3/6(-);
PoE Port: PoE: Ports 1 to 24
Max. Port Power: 30 W
PoE Power Budget: 370 W
