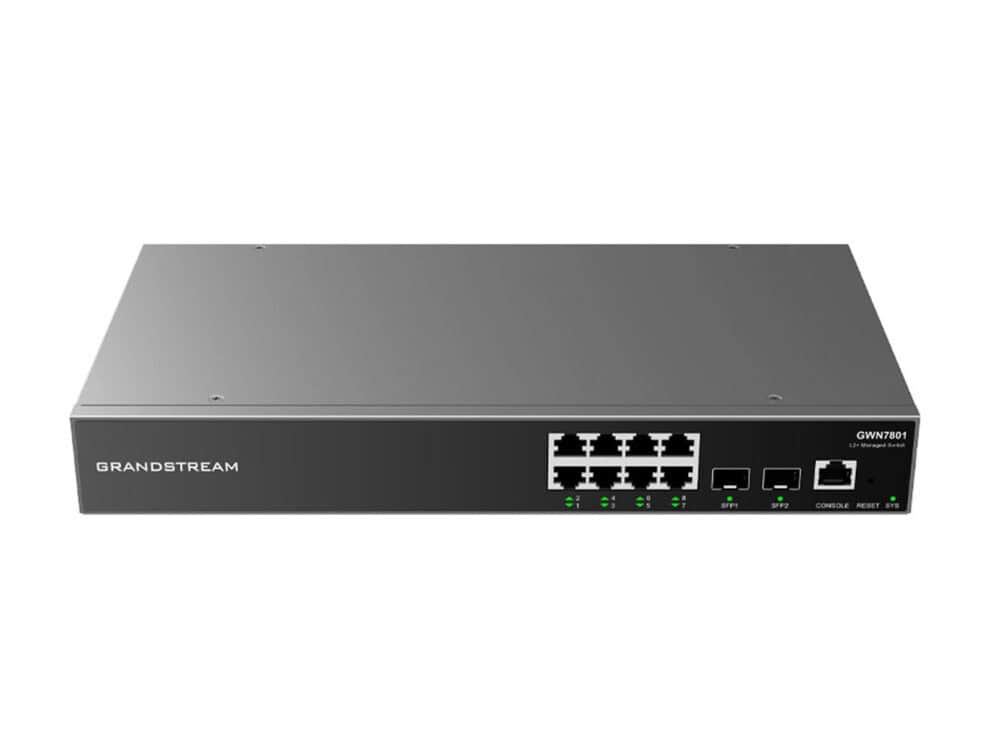

Features – Grandstream 8 Port PoE Switch :
- 8 x Gigabit Ethernet ports and 2 Gigabit SFP ports
- Smart power control to support dynamic PoE/PoE+ power allocation per port
- Supports deployment in IPv6 and IPv4 networks
- Provides quaternary binding of IP, MAC, VLAN & port; ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
- Local Web UI to manage switch, GWN.Cloud and GWN Manager, Grandstreams cloud and on-premise Wi-Fi management platform
- Built-in QoS allows for prioritization of network traffic.
Specifications:
- Gigabit Ethernet Ports: 8
- Gigabit SFP Ports: 2
- Console Port: Yes
- # of PoE Ports: 8
- Integrated Power Supply: 150W
- Max Output Power per PoE Port: 30W
- Max Total PoE Output Power: 120W
- PoE Standards: IEEE 802.3af/at
- Multicast: IGMP Snooping, MLD Snooping, MVR
- DHCP: DHCP server, DHCP relay, Option 82, 60,160 and 43
- Maintenance: CPU & memory monitoring, SNMP, RMON, LLDP&LLDP-MED, backup & restore, syslog, alert, diagnostics including Ping, Traceroute, port mirroring, UDLD(TBD) & copper test
- Mounting: Desktop/ Wall-Mount
Switching:
- 8K static, dynamic and filtering MAC addresses
- 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, voice VLAN
- VLAN virtual interface
- GVRP (pending)
- 8 link aggregation groups
- Spanning tree, 16 instances for STP/RSTP/MSTP
QoS/ACL:
- Auto detection and prioritization of voice/video/RTP/SIP/other latency-sensitive packets (pending)
- Port priority
- Priority mapping
- Queue scheduling, including SP, WRR, WFQ, SP-WRR and SP-WFQ
- Traffic shaping
- Rate limit
- 1.5K ACL for Ethernet, IPv4 & IPv6
Security:
- User hierarchical management and password protection, HTTPS, SSH, Telnet
- 802.1X authentication
- AAA authentication including RADIUS, TACACS+
- Storm control
- Port isolation, port security, sticky MAC
- Filtering MAC address
- IP source guard, DoS attack prevention, ARP inspection
- DHCP Snooping
- Loop protection including BPDU protection, root protection and loopback protection
- Kensington Security Slot
