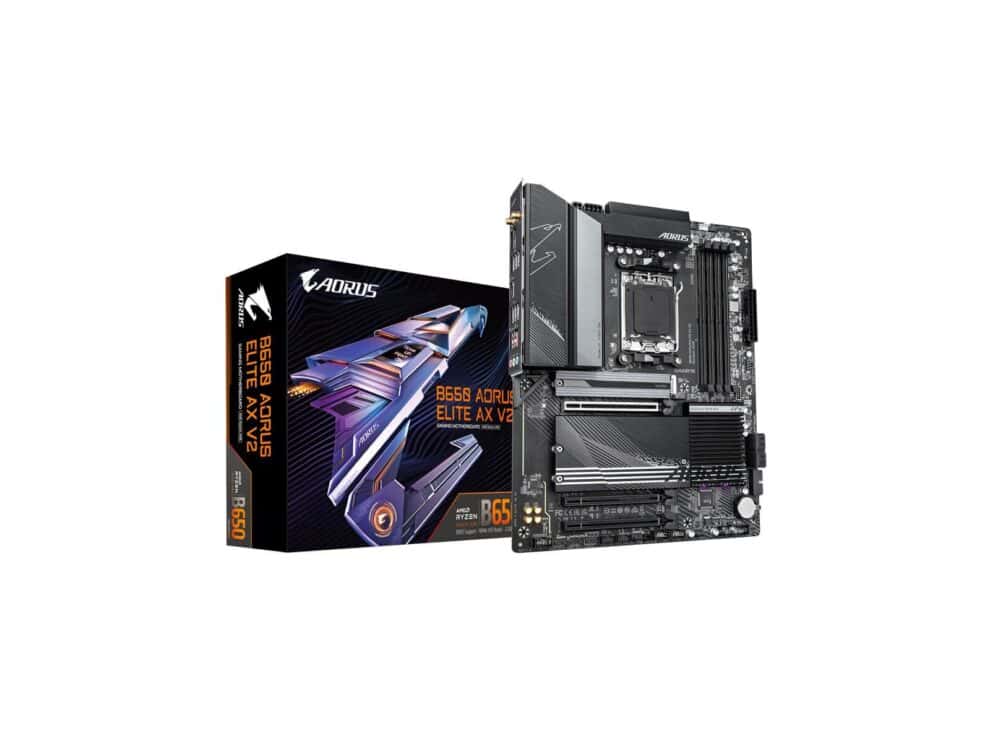

featured_image_alt: AORUS B650 motherboard and box
---

### Key Features

- AMD Socket AM5：Supports AMD Ryzen™ 7000/ Ryzen™ 8000/ Ryzen™ 9000 Series Processors
- Unparalleled Performance Twin 12+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4\*DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
- Superfast Storage：1\*PCIe 5.0 x4 and 2\*PCIe 4.0 x4 M.2 Connectors
- Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
- EZ-Latch：PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
- Fast Networks：2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity HDMI, DP, Front USB-C® 20Gb/s, Rear USB-C® 10Gb/s
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS Without Installing the CPU, Memory and Graphics Card

### SPECIFICATIONS:

- Socket: AM5
- CPU (Max Support): RYZEN 9
- Chipset: AMD B650 Chipset
- DDR4 Memory: DDR5 4400, 4800, 5200, 5600, 6000, 6200, 6400, 6600, 6666, 6800, 7000, 7200, 7600, 7800, 8000 MHz
- Memory Channel: Dual
- DIMM Slots: 4
- Max Memory (GB): 128
- PCI-E x16: 2
- PCI-E x1: 1
-
- M.2 Slot: 3
- RAID: 0/1/10
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

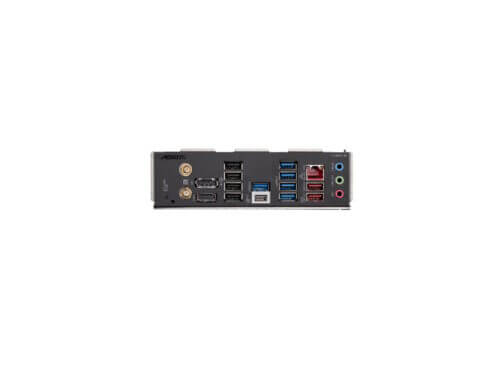

- – 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    – 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    – 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    – 1 x USB Type-C® port with USB 3.2 Gen 2×2 support, available through the internal USB header
    – 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    – 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    – 4 x USB 3.2 Gen 1 ports on the back panel
- DisplayPort: 1
- HDMI: 1
- DirectX: 12
- Form Factor: ATX
- Operating System: Windows 10 x64, Windows 11 x64
