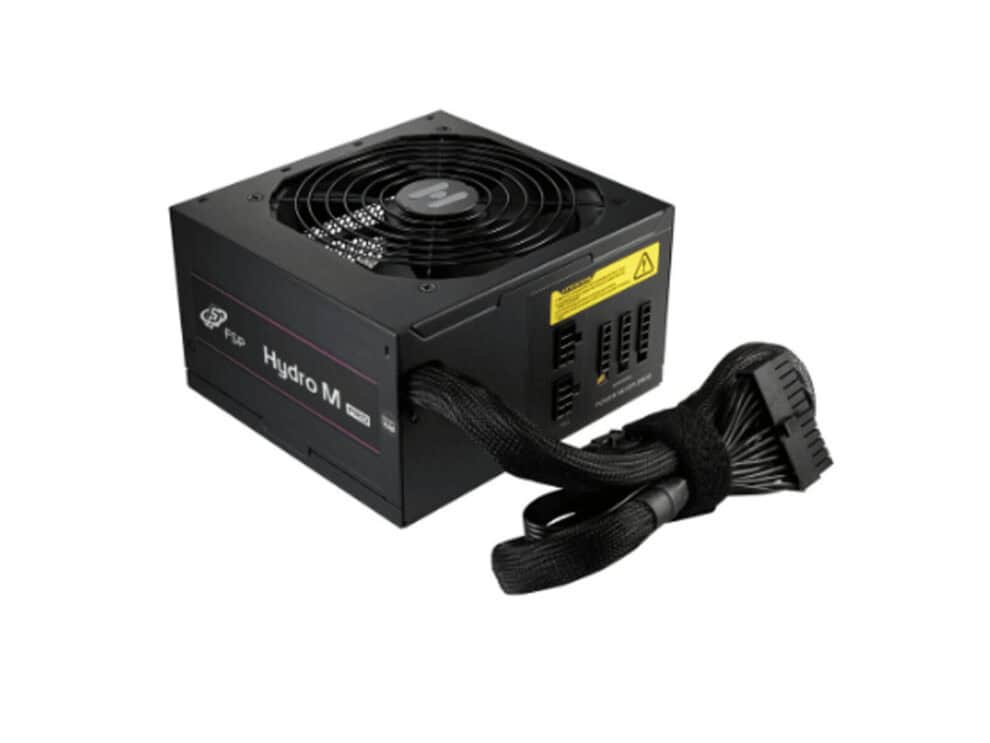

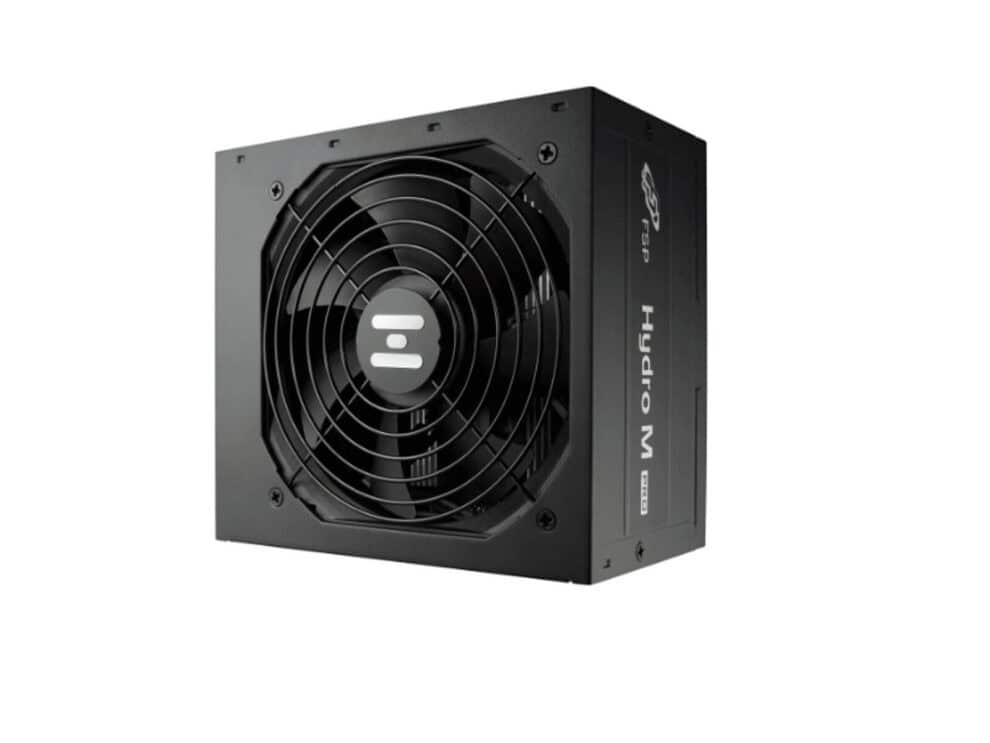

The new HYDRO M PRO PSUs comply fully ATX12 v2.52 standard and latest safety 62368 regulation as well, and features semi-modular with all black and high-grade ribbon cables, will give your PC a polished look. The HYDRO M PRO series is characterized by a powerful single +12V rail design that continually delivers maximun performance for the most demanding components, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, the HYDRO M PRO series is built with 450V, 105°C capacitors for high durability. With an 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
- Complies with ATX12 v2.52 & EPS12 V2.92
- Efficiency≧ 88% @ typical load
- Active PFC ≧ 0.9
- Hold up time ≧ 17ms @ 80% Load
- Semi-modular design with ribbon cables
- 450V, 105°C capacitors for a long product life cycle
- 120mm hydraulic bearing (HYB) fan
- +5V & 3.3V DC to DC module design
- +12V Single-Rail Design
- Complete protections : OCP/OVP/OPP/SCP
| Model | HP2-700M |
| Rated Output Power | 700W |
| Form Factor | ATX |
| 80 PLUS Certification | 80 PLUS® 230V EU Bronze |
| Input Voltage | 200-240V |
| Input Current | 5A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 88% |
| Fan Type | HYB Fan, 120mm |
| Dimensions(L x W x H) | 150 x 140 x 86mm |
| Protection | OCP, OVP, OPP, SCP |
