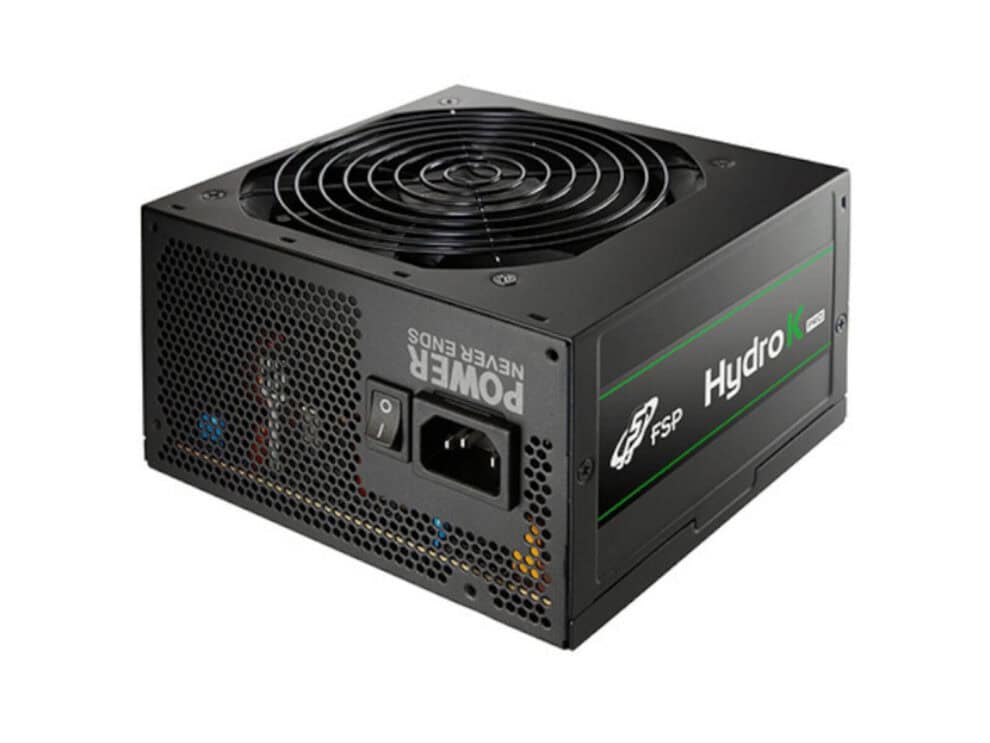

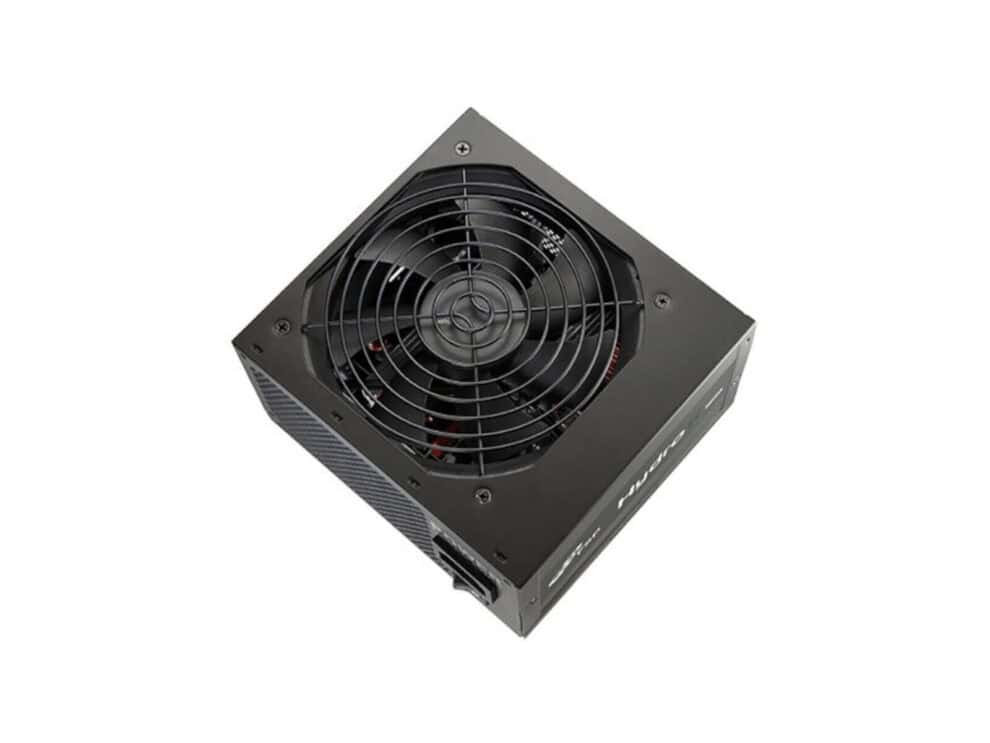

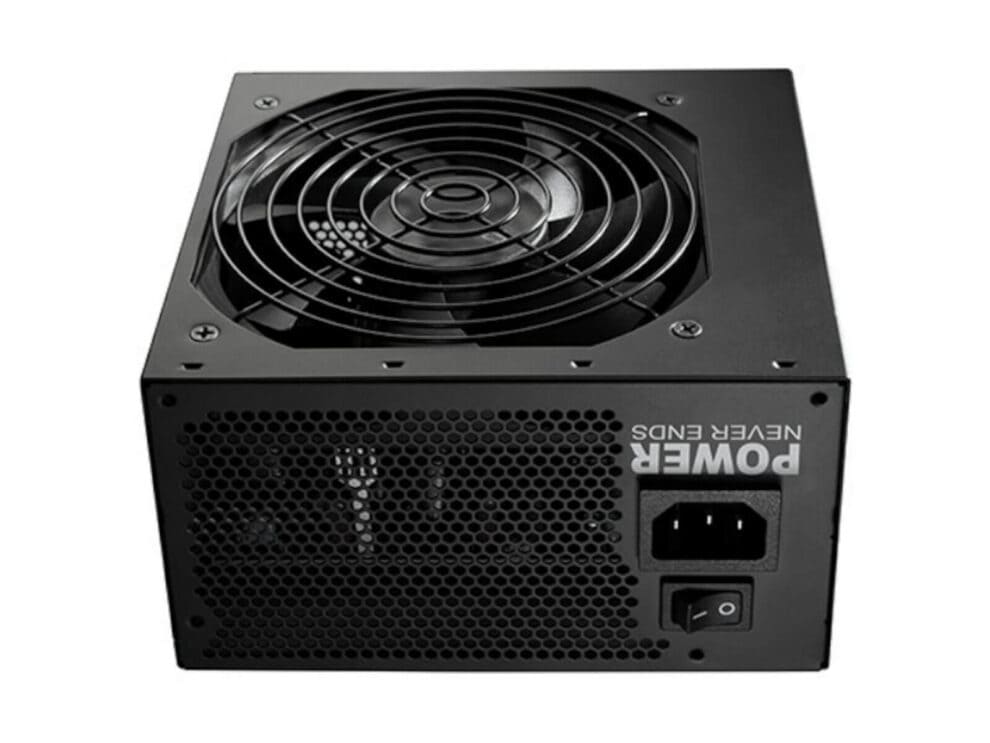

The new Hydro K Pro PSUs comply fully with ATX12 v2.52 standard and the latest safety 62368 regulation as well and comes with high-grade ribbon cables, give your PC a polished look. The Hydro K Pro series is designed as a powerful single +12V rail that continually delivers maximum performance for the most demanding graphic cards, while FSP’s custom DC-DC design provides safety and power efficiency. Besides, with a 230V 80 Plus® rating, delivers over 88% high efficiency and low noise levels thanks to its hydraulic bearing fan design, where a large 120mm fan takes care of cooling duties when required, making it excellent for situations that are sensitive to size and noise.
FEATURES:
- Intel latest CPU ready
- Global safety approved
- Active PFC ≥ 0.9
- High efficiency ≧ 88%
- Powerful +12V single rail design
- Hold up time ≥ 17ms @ 80% load
- Double layer EMI filter
- 120mm hydraulic bearing (HYB) fan
- +5V & 3.3V DC to DC module design
- All black cables
- Complete protections: OCP/OVP/OPP/SCP
SPECIFICATIONS:
- Rated Output Power: 600W
- Form Factor: ATX
- 80 PLUS Certification: 80 PLUS® 230V Bronze
- Input Voltage: 200-240V
- Input Current: 4.5A
- Input Frequency: 50-60Hz
- PFC: Active PFC
- Efficiency: ≥ 88%
- Fan Type: HYB Fan, 120mm
- Protection: OCP, OVP, SCP, OPP
- Cable Connections:
- ATX 20+4 x 1
- 4+4 PIN x 2
- PCI-E 6+2 x 2
- SATA x 5
- Molex (PERIPHERAL) x 2
- Floppy x 1
- Dimensions: 15 x 14 x 8.6 cm
