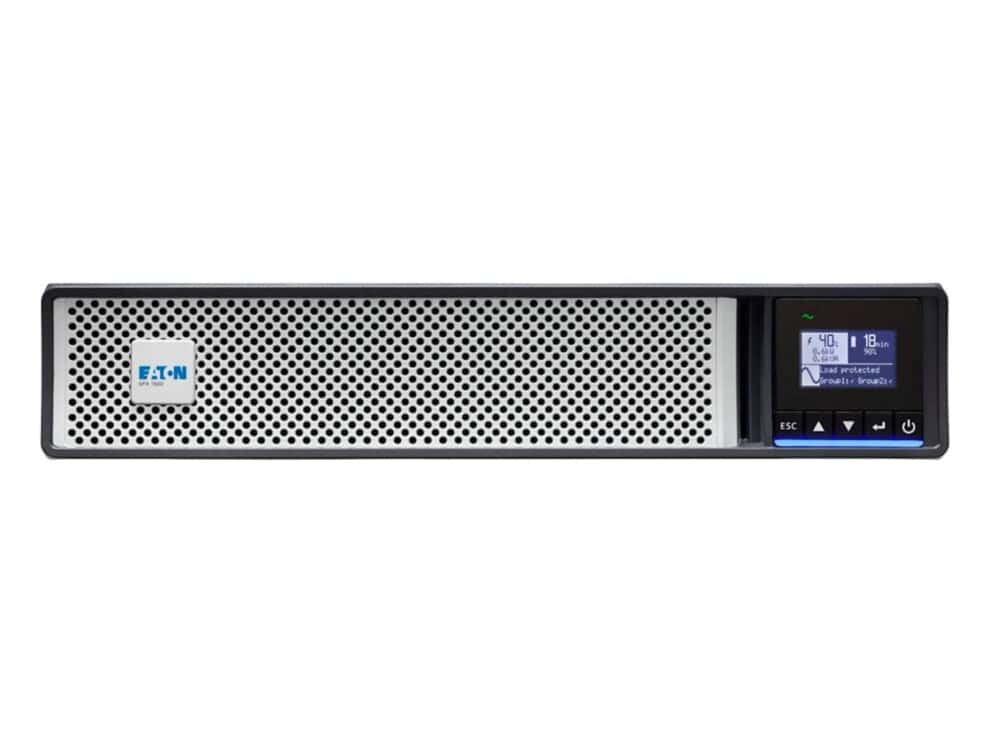

title: Eaton Eaton 5PX 1500i RT2U G2 1500VA Tower/Rack 2U
date: 2023-07-05T17:18:57Z
modified: 2026-05-05T16:44:46Z
permalink: "https://tech.co.za/product/eaton-eaton-5px-1500i-rt2u-g2-1500va-tower-rack-2u/"
type: product
status: publish
excerpt: ""
wpid: 471912
product_brand:
  - Eaton
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Accessories
  - UPS
featured_image: "https://tech.co.za/wp-content/uploads/2023/07/5PX1500iRT2UG2.jpg"
---

Battery
Battery type: Lead-acid maintenance-free (replaceable)
Battery replacement: User replaceable
Battery quantity: 4
Battery management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units
Battery rating: 12 V / 9 Ah
Extended battery capability: Yes

Electrical output
Receptacle: (8) C13
Voltage: 230V
Wattage: 1500 W
Output power factor: 1
Output voltage range: 230 V (+6%/-10%)
Output waveform: Sine wave
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max: 0
Feed type: 1
Topology: Line-interactive
VA rating: 1500 VA

Electrical input
Input connection: C14
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50-60 Hz
Input voltage range: 160-294 V (adjustable to 150 V-294 V)
Input frequency range: 47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode
