General Specifications

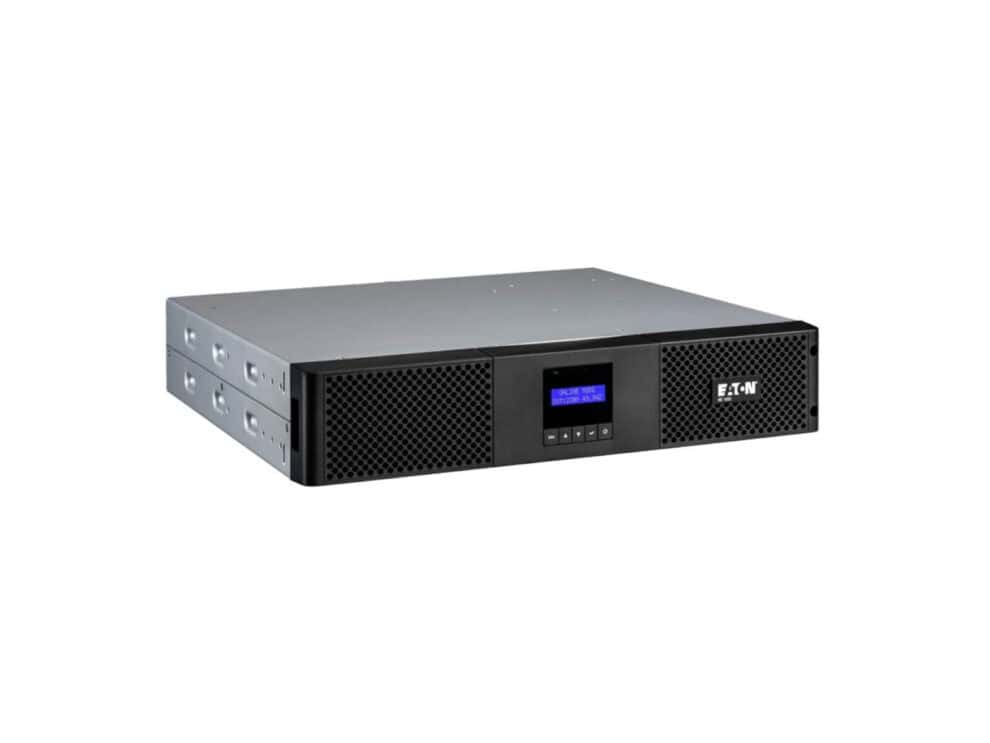

| Product Name | Eaton 9E UPS |
| Catalog Number | 9E1000IR |
| Product Length/Depth | 438 mm |
| Product Height | 86.5 mm |
| Product Width | 438 mm |
| Product Weight | 17.6 kg |
| Compliances | CE Marked TUV |
| Certifications | IEC/EN 62040-1 IEC/EN 62040-2 CE |
| EAN | 3553340710339 |
Battery
| Battery type | Sealed, lead-acid |
| Runtime graph | |
| Battery replacement | Replacable batteries |
| Battery quantity | 3 |
| Battery management | Temperature compensated charging method Automatic battery testDeep discharge protection |
| Battery rating | 12 V / 7 Ah |
| Extended battery capability | No |
Electrical output
| Receptacle | (4) C13 |
| Voltage | 230V |
| Wattage | 900 W |
| Output power factor | 0.9 |
| Output voltage range | 220/230/240 V +/- 2% |
| Output waveform | Sine wave |
| Output nominal voltage | 230V default (220/230/240V) |
| Voltage distortion output (linear load) – max | 3 |
| Feed type | 1 |
| Topology | Online/Double-conversion |
| VA rating | 1000 VA |
Electrical input
| Input connection | C14 |
| Input nominal voltage | 230V default (220/230/240V) |
| Nominal frequency | 50/60 Hz |
| Input power factor | >.99 |
| Input frequency range | 40-70 Hz |
Communications
| Includes network card | No |
| Communication | USB port (HID compliant)Serial port (RS232)Mini-terminal block for remote power off |
| Ethernet interface | No |
| User interface | Multilingual LCD display |
| Potential free switch contact | Yes |
| Expansion slots | One slot for optional communication card |
| Software compatibility | Eaton Intelligent Power Manager, Eaton Intelligent Power Protector |
| Type of interface | Other |
Environmental
| Altitude | 3000 m |
| Noise level | <41 dB at 1 meter |
| Temperature range | 0° to 40°C (32° to 104°F) |
| Relative humidity | 0-96% non-condensing |
Additional specifications
| Construction type | 482.6 mm (19 inch) device |
| Package contents | UPS(2) IEC-IEC output cablesUSB cable Rack-mounting kit (rails and brackets)Safety instructionsQuickstart guide |
| Phase (output) | 1 |
| Internal bypass | Yes |
| Auto shutdown function | Yes |
| Color | Black |
| Efficiency | 90 |
| Rack mounting kit | Yes |
| Phase (input) | 1 |
| Hot swap power | No |
