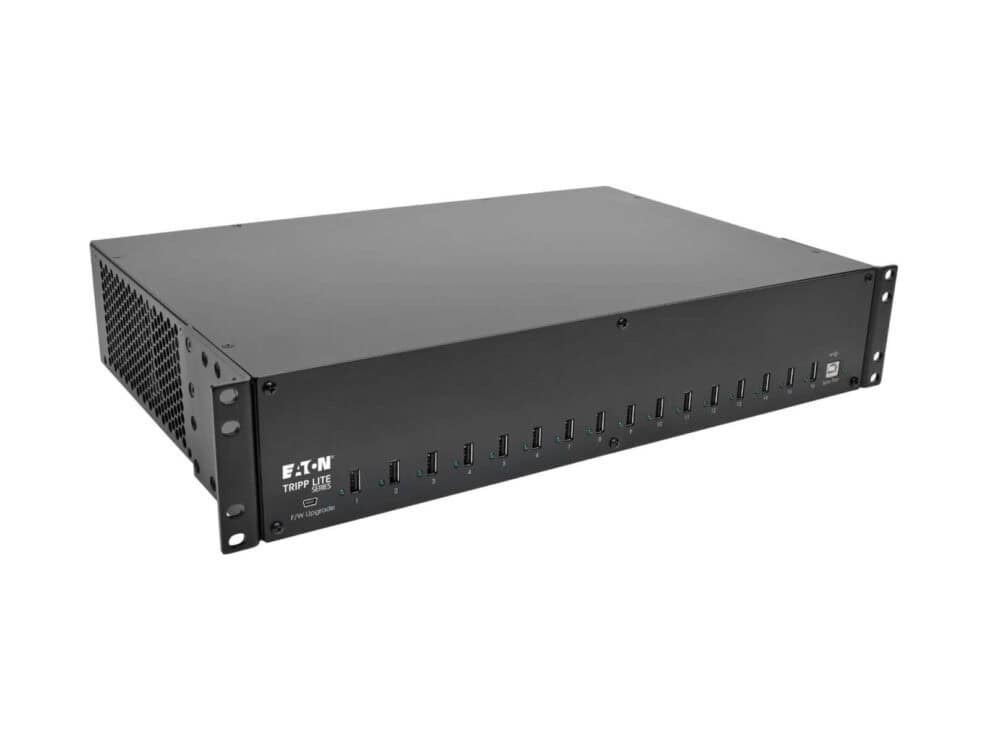

2U rack-mountable USB charger with integrated hub charges and syncs up to 16 tablets, smartphones and other mobile devices. Recommended for schools, offices and other environments where multiple USB devices are used.
- Maximum charge output of 2.4A per USB port
- Supports USB 2.0 data transfer rates up to 480 Mbps
- Syncs any USB device using its compatible software
- Enables future software upgrades to support newer devices
- Mounts in 2U of EIA-standard 19 in. rack
OVERVIEW
Product Type: Multi-Device Charger
Charging Form Factor: Rack Mount
Charger Functions: Charge; Sync
Device Compatibility: Tablet; Phone
Technology: USB 2.0 (High Speed)
Device Slots: 16
INPUT
Nominal Input Voltage(s) Supported: 230V AC
Input Connection Type: IEC320-C14
Voltage Compatibility (VAC): 230
Input Frequency: 50 / 60 Hz
Input Plug Type: C14
Input Cord Length (m): 3.05
Input Current: 2.5A
POWER
Power Consumption (Watts): 56
CONNECTIONS
Number of Ports: 16
Side A – Connector 1: (16) USB A (FEMALE)
Side A – Connector 2: USB B (FEMALE)
Side A – Connector 3: MICRO-USB B (FEMALE)
Side B – Connector 1: IEC-320-C14
USER INTERFACE, ALERTS & CONTROLS
LED Indicators: Green (16x USB Charging, 1x Sync)
CHARGING
Number of Charging Ports: 16
Total Charging Amps: 40A
Total Charging Watts: 200
Charging Method: USB
Charging Port Type: USB A (FEMALE)
Charging Ports Details: Pass through
Charging Ports / Amps: (16) 2.4A
Overcharge Protection: Yes
Charging Amps per Port: 2.4A
PHYSICAL
Color: Black
Material of Construction: Steel
Shipping Dimensions (hwd / cm): 19.81 x 42.42 x 48.26
Shipping Weight (kg): 7.21
Unit Dimensions (hwd / mm): 86.7 x 440 x 301.7
Unit Packaging Type: Box
Unit Weight (kg): 4.58
Number of Shelves: 0
ENVIRONMENTAL
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Storage Temperature Range: 5° to 122°F (-15° to 50°C)
Relative Humidity: 5% to 95% RH, Non-Condensing
BTUs
: 191.1 BTU/Hr (Full load)
FEATURES & SPECIFICATIONS
Built-In Circuit Breaker: Yes
Cord Management: No
Overcurrent Protection: Yes
EMI/RFI Line Noise Protection: Yes
Flow-Through Ventilation: Yes
UV Sterilization: No
Driver Required: No
STANDARDS & COMPLIANCE
Product Certifications: CAN/CSA-C22.2 No. 60950-1 (Canada); IEC 60950-1; NOM (Mexico); UL 60950-1
Product Compliance: RoHS; REACH; FCC Part 15 Class B (USA); UKCA
