Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 10
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 10
SFP module slots quantity: 2
Console port: RJ-45
Data transmission
Switching capacity: 24 Gbit/s
Forwarding rate: 17.85 Mpps
MAC address table: 8000 entries
Store-and-forward: Yes
Jumbo frames support: Yes
Jumbo frames: 9216
Power

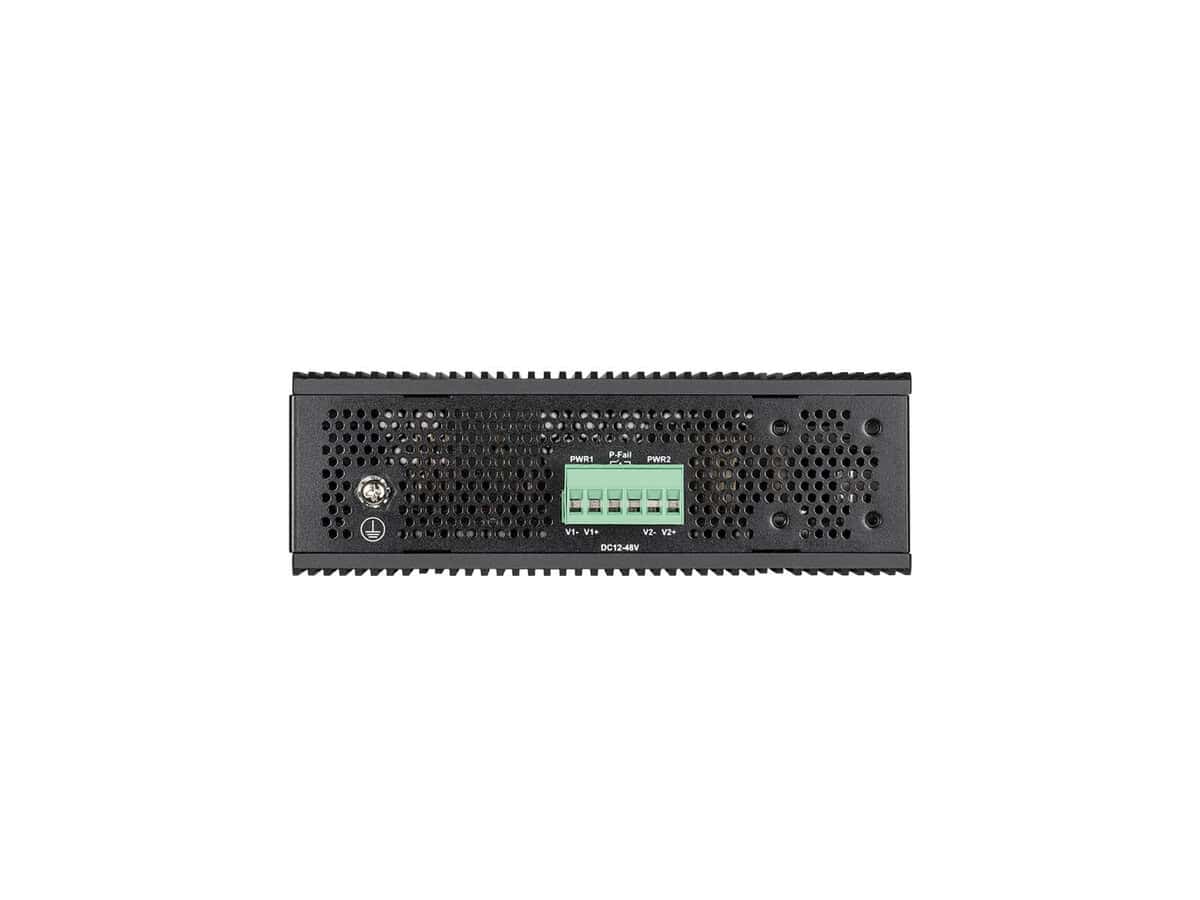

DC input voltage: 12 – 48 V
Power consumption (max): 10.26 W
Weight & dimensions
Width: 171.2 mm
Depth: 48 mm
Height: 210 mm
Weight: 1.63 kg
