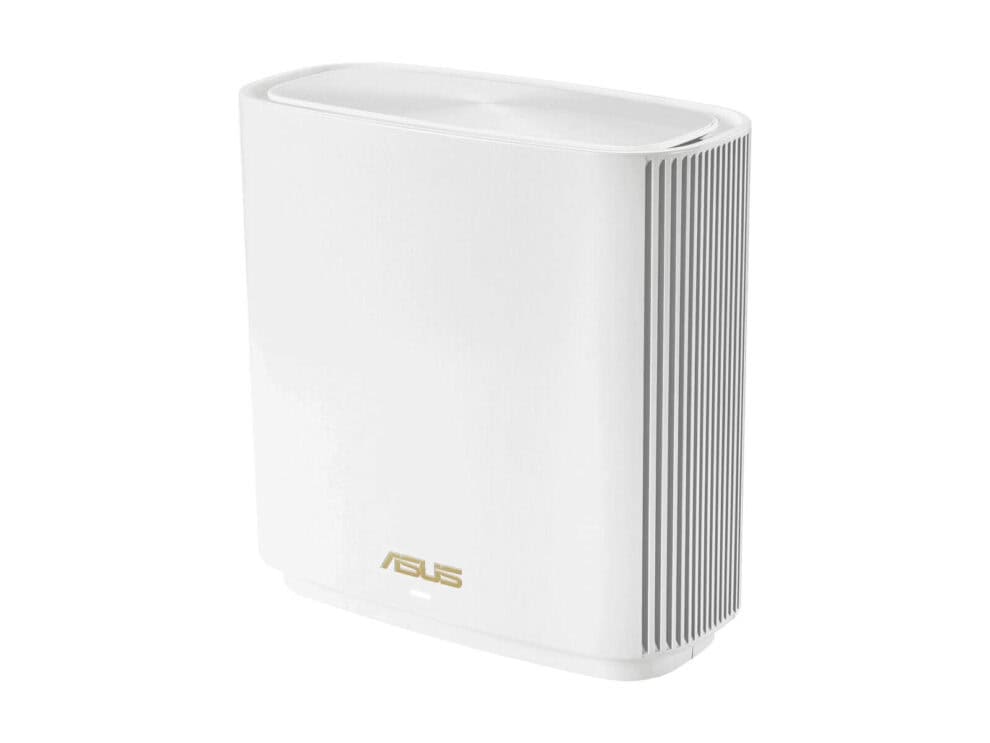

The ZenWiFi AX system consists of a pair of ASUS AX6600 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!
Through Engineering
ZenWiFi AX features a quad-core CPU to deliver the full performance potential of WiFi 6. Its vertical housing holds a specially designed antenna and circuit board that optimizes WiFi signal strength and provides better airflow, improving thermal performance for reliable operation.
– Special designed vents for increased airflow
– Double heatsink for maximized heat dissipation
– 45° antennas ensure strong WiFi in multi-story homes
– Vertical housing with space between antennas and circuit board for minimal WiFi signal interference
– Quad-core CPU (with WiFi) plus additional WiFi chipset
– 2.5G WAN/LAN port
WAN connection
Ethernet WAN: Yes
DSL WAN: No
WAN connection type: RJ-45
Wireless LAN features
Wi-Fi band: Tri-band (2.4 GHz / 5 GHz / 60 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 6600 Mbit/s
Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Modulation: 1024-QAM
Network
Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 1000 Mbit/s
Networking standards: IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Port forwarding: Yes
Dynamic DNS (DDNS): Yes
VPN Passthrough: Yes
VPN support: IPSec, PPTP, L2TP, PPTP, OpenVPN

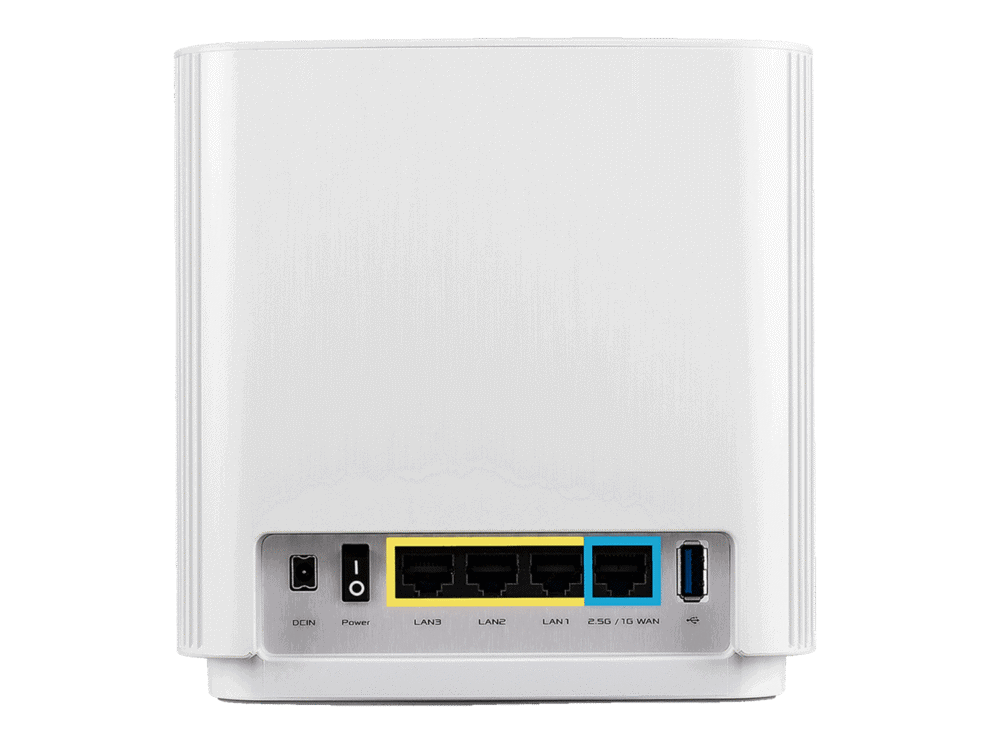

Ports & interfaces
Ethernet LAN (RJ-45) ports: 3
USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
