- – Ultrafast WiFi 6 – Enjoy speeds up to 4200 Mbps and 4X network efficiency with OFDMA and 160 MHz channels
- – True Multi-Gigabit wired speeds – Aggregated 2 Gigabit LAN connections, wired 2.5Gbps port and WiFi 6
- – Easy Port Forwarding in 3 Steps – Open NAT makes port forwarding simple, eliminating frustrating and complicated manual configuration
- – ASUS AiMesh Support – Create a flexible, seamless whole-home mesh network with AiMesh-compatible routers
- – Tested Durability and Stable Operation – TUF Gaming AX4200 is built to be durable and undergoes verified testing to ensure reliable, stable operation
Wireless LAN features
Wi-Fi band: Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max): 3603 Mbit/s
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
WLAN data transfer rate (first band): 574 Mbit/s
WLAN data transfer rate (second band): 3603 Mbit/s
Network
Ethernet LAN: Yes
Ethernet LAN interface type: Gigabit Ethernet
Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Port forwarding: Yes
Port triggering: Yes
Dynamic DNS (DDNS): Yes
SSID-based VLAN assignment: Yes
Number of guest networks (2.4 GHz): 3
Number of guest networks (5 GHz): 3
Support Samba (storage); Yes
VPN server: VPN Server OVPN, VPN Server PPTP, VPN Server WireGuard
VPN support: VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion

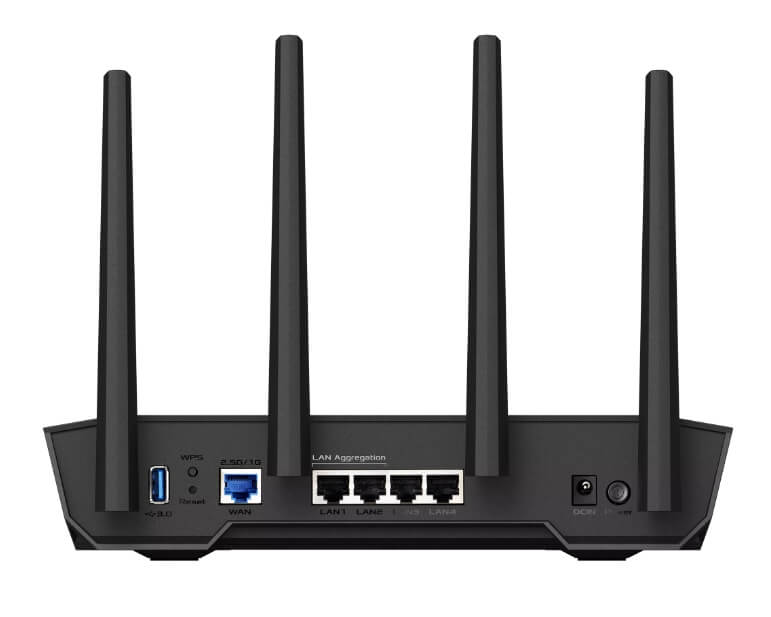

Ports & interfaces
Ethernet LAN (RJ-45) ports: 4
USB port: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
DC-in jack: Yes
