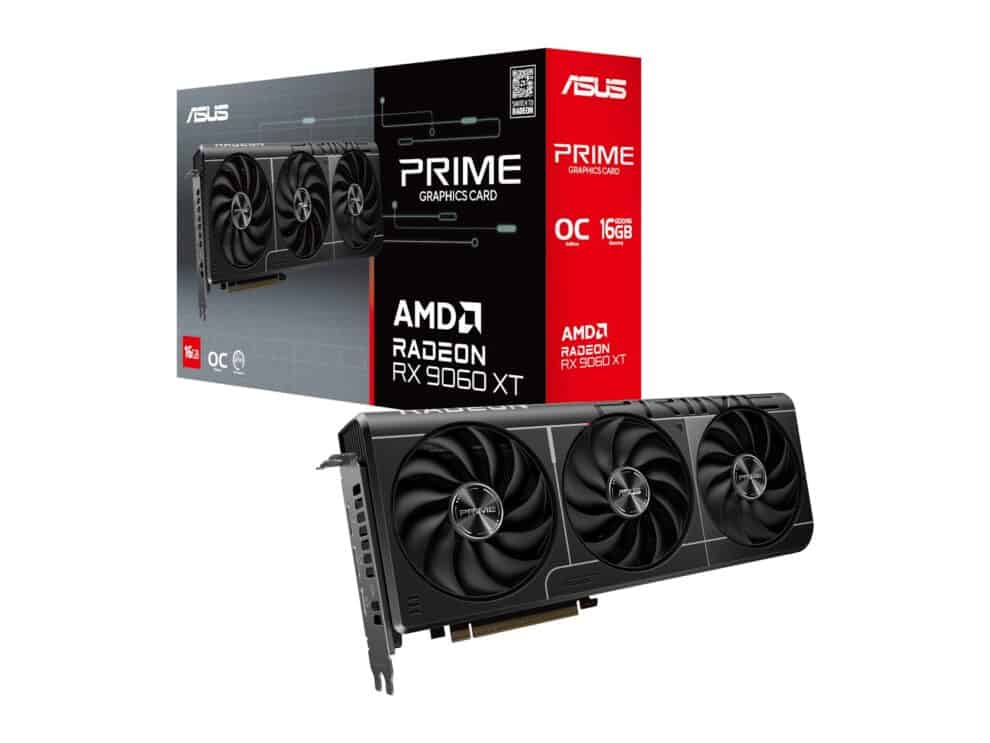

title: Asus Prime Radeon RX 9060 XT 16GB OC Edition Graphics Car
date: 2025-07-12T09:51:37Z
modified: 2026-05-05T16:49:33Z
permalink: "https://tech.co.za/product/asus-prime-radeon-rx-9060-xt-16gb-oc-edition-graphics-car/"
type: product
status: publish
excerpt: "AMD Radeon™ RX 9060 XT 16GB GDDR6\\nDigital Max Resolution 7680 x 4320\\n550W Recommended PSU\\n1 x 8-pin Power Connectors"
wpid: 545577
product_brand:
  - Asus
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Components
  - Graphics Cards (GPUs)
pa_graphics-card:
  - 8GB (Dedicated)
featured_image: "https://tech.co.za/wp-content/uploads/2025/07/90YV0LF1-M0NA00a.jpg"
---

| Graphics Processing | AMD Radeon™ RX 9060 XT |
| --- | --- |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock | OC mode (GPU Tweak III): up to 3330 MHz (Boost Clock)/up to 2760 MHz (Game Clock) Default mode: up to 3310 MHz (Boost Clock)/up to 2740 MHz (Game Clock) |
| Stream Processors | 2048 |
| Memory Speed | 20 Gbps​ |
| Memory Interface | 128-bit |
| Resolution | 7680 x 4320 |

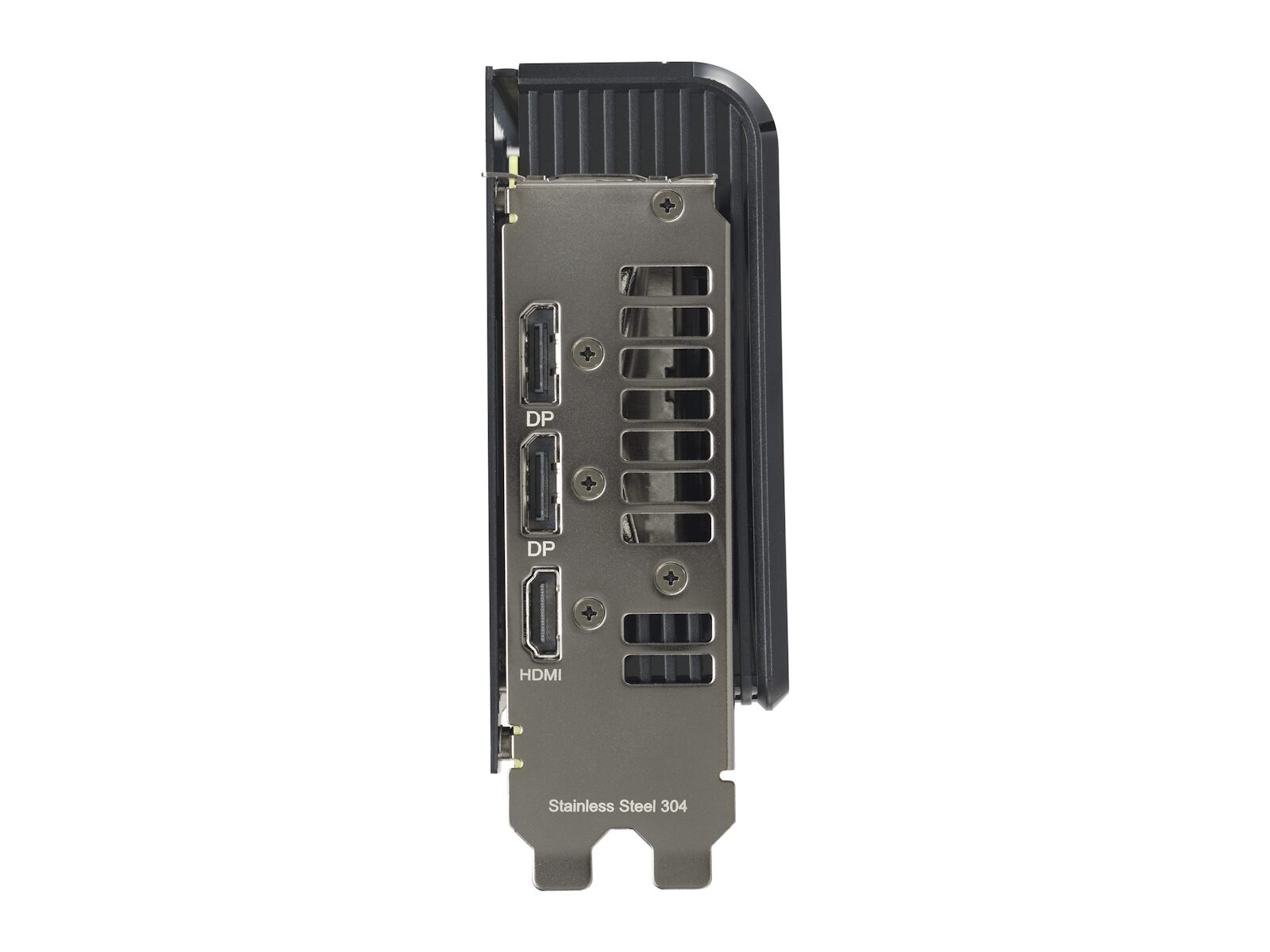

| Interface | Yes x 1 (Native HDMI 2.1b) Yes x 2 (Native DisplayPort 2.1a) HDCP Support Yes (2.3) |
| Maximum Display Support | 3 |
| Dimensions | 304 x 126 x 50mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| More info: | [https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspec/](https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9060xt-o16g/techspec/) |
