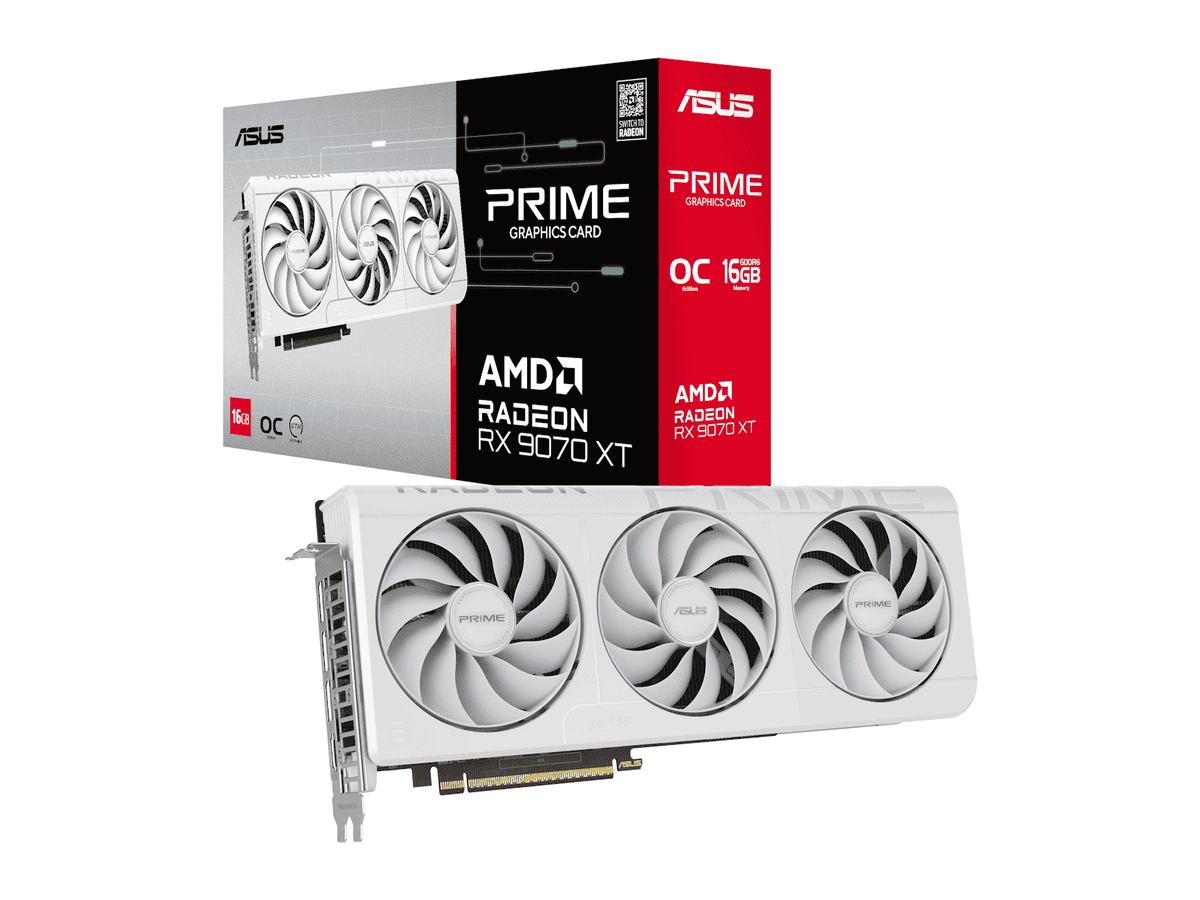

title: Asus Prime AMD Radeon RX 9070 XT 16GB Graphics Card
date: 2026-06-17T10:08:24Z
modified: 2026-06-17T17:28:12Z
permalink: "https://tech.co.za/product/asus-prime-amd-radeon-rx-9070-xt-16gb-graphics-card/"
type: product
status: publish
excerpt: "AMD Radeon RX 9070 XT 16GB GDDR6\\n750W Recommended PSU\\n3 x 8-pin Power Connectors"
wpid: 686072
product_brand:
  - Asus
product_type:
  - simple
product_cat:
  - Components
  - Graphics Cards (GPUs)
pa_graphics-card:
  - 16GB (Dedicated)
featured_image: "https://tech.co.za/wp-content/uploads/2026/06/90yv0l75-m0na00a.png"
featured_image_alt: "asus graphics card/amd/pcie5/16gb gddr6/oc mode:up to 3030mhz (boost clock)/default mode:up to 2480mhz(boost)1xhdmi/3xdp/750w"
---

| Graphic Engine | AMD Radeon™ RX 9070 XT |
| --- | --- |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock | OC mode(GPU Tweak III): up to 3030 MHz (Boost Clock)/up to 2480 MHz (Game Clock) Default mode: up to 3010 MHz (Boost Clock)/up to 2460 MHz (Game Clock) |
| Stream Processors | 4096 |
| Memory Speed | 20 Gbps​ |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

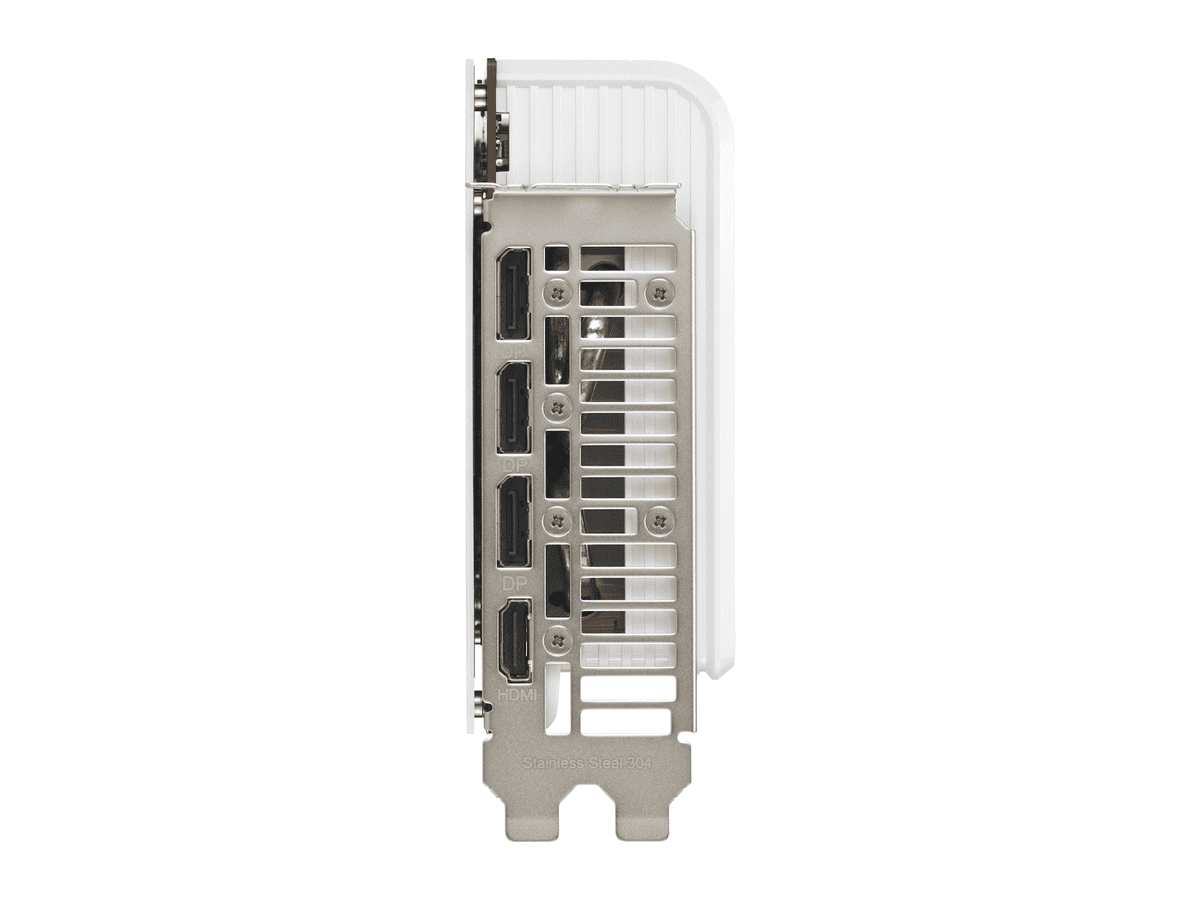

| Interface | Yes x 1 (Native HDMI 2.1b), Yes x 3 (Native DisplayPort 2.1a), HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Dimensions | 312 x 130 x 50 mm |
| Recommended PSU | 750W |
| Power Connectors | 3 x 8-pin |
| Slot | 2.5 Slot |
| More info: | [https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16g-white/techspec/](https://www.asus.com/motherboards-components/graphics-cards/prime/prime-rx9070xt-o16g-white/techspec/) |
