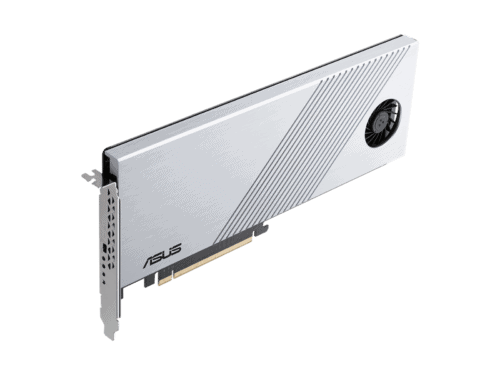

ASUS Hyper M.2 x16 Gen 4 Card (PCIe 4.0/3.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 256 Gbps for AMD TRX40/X570 PCIe 4.0 NVMe RAID and IntelĀ® platform RAID-on-CPU functions
Two-phase power solution with up to 14-watt output supports the latest NVMe drives
Large heatsink and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability
Adapted server-grade PCB supports up to four PCIe 4.0/3.0 M.2 drives, with up to 256 Gbps bandwidth for smooth data transfers
Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports IntelĀ® platform RAID-on-CPU functions
Also support other vendorsā motherboards via PCIe bifurcation in BIOS setting
Ports & interfaces
Host interface: PCIe
Output interface: M.2
Expansion card standard: PCIe 4.0
Design
Internal: Yes
Product colour: Silver
Purpose: PC
Cooling type: Active
Number of fans: 1 fan(s)
Number of expansion slots: 4
LED indicators: Access
Easy to install: Yes
Features
Data transfer rate (max): 256 Gbit/s
