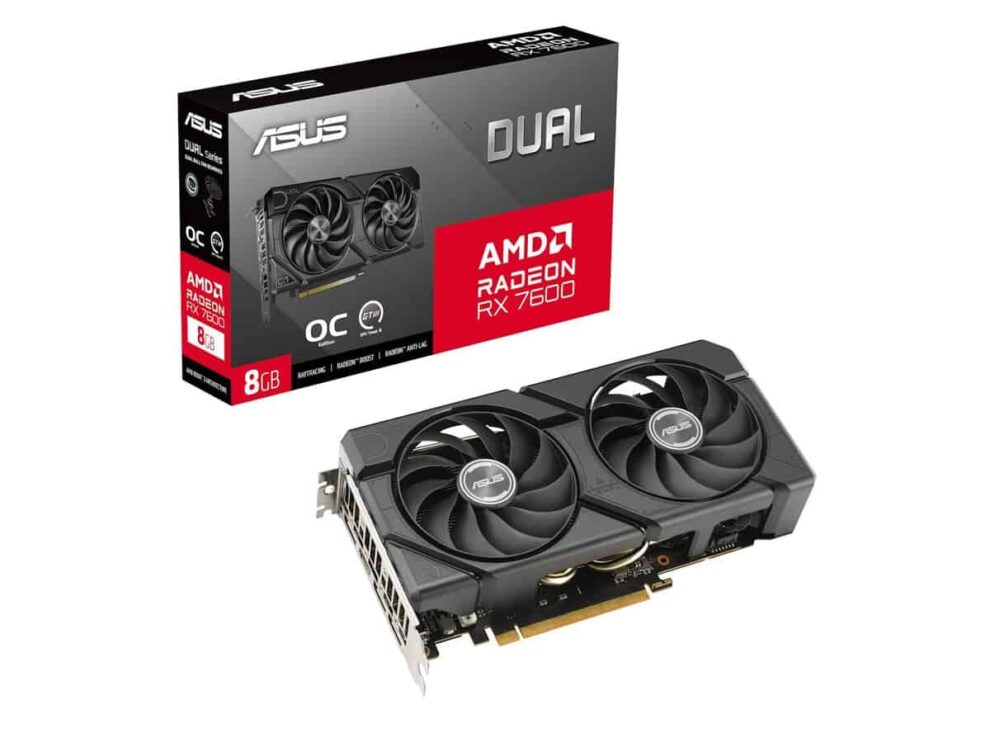

title: Asus Dual Radeon RX 7600 EVO OC Edition 8GB Graphics Card
date: 2026-03-18T18:27:47Z
modified: 2026-05-20T11:05:31Z
permalink: "https://tech.co.za/product/asus-dual-radeon-rx-7600-evo-oc-edition-8gb-graphics-card/"
type: product
status: publish
excerpt: "AMD Radeon™ RX 7600 8GB GDDR6\\n550W Recommended PSU\\n1 x 8-pin Power Connector"
wpid: 574683
product_brand:
  - Asus
product_type:
  - simple
product_cat:
  - Components
  - Graphics Cards (GPUs)
pa_graphics-card:
  - 8GB (Dedicated)
featured_image: "https://tech.co.za/wp-content/uploads/2026/03/90YV0LD0-M0NA00a.jpg"
---

| Graphic Engine | AMD Radeon™ RX 7600 |
| --- | --- |
| Bus Standard | PCI Express 4.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 8GB GDDR6 |
| Engine Clock | OC mode: up to 2715 MHz (Boost Clock)/up to 2300 MHz (Game Clock) |
| efault mode: up to 2695 MHz (Boost Clock)/up to 2280 MHz (Game Clock) |  |
| Stream Processors | 2048 |
| Memory Speed | 18 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

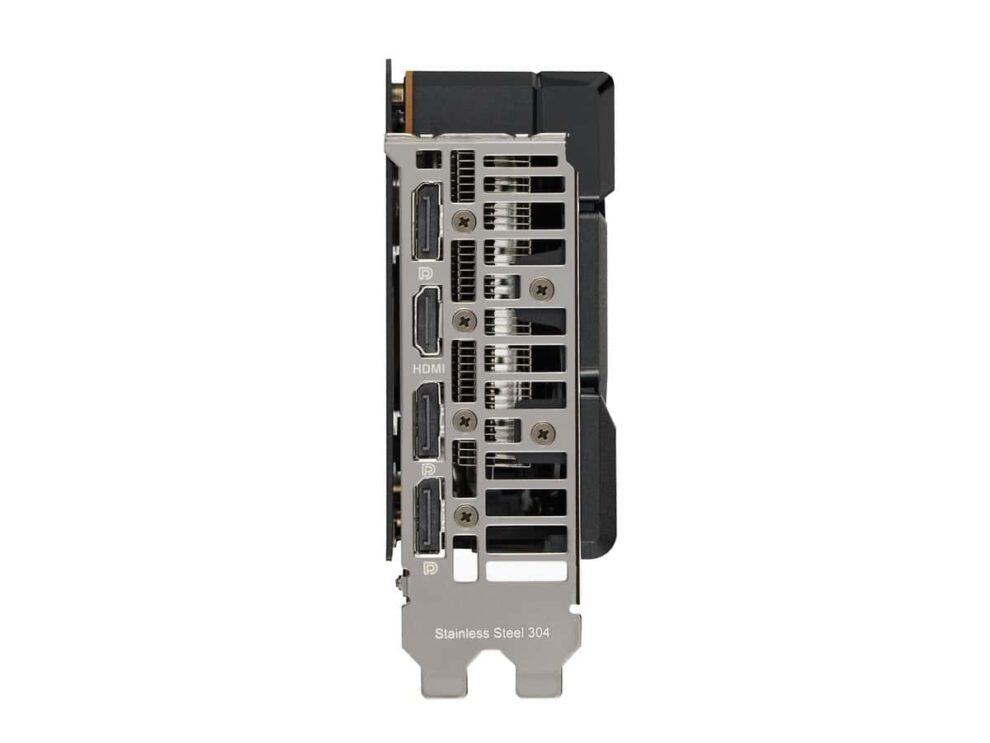

| Interface | Yes x 1 (Native HDMI 2.1), Yes x 3 (Native DisplayPort 1.4a), HDCP Support Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Dimensions | 2.9 x 12.3 x 4.9 cm |
| Recommended PSU | 550W |

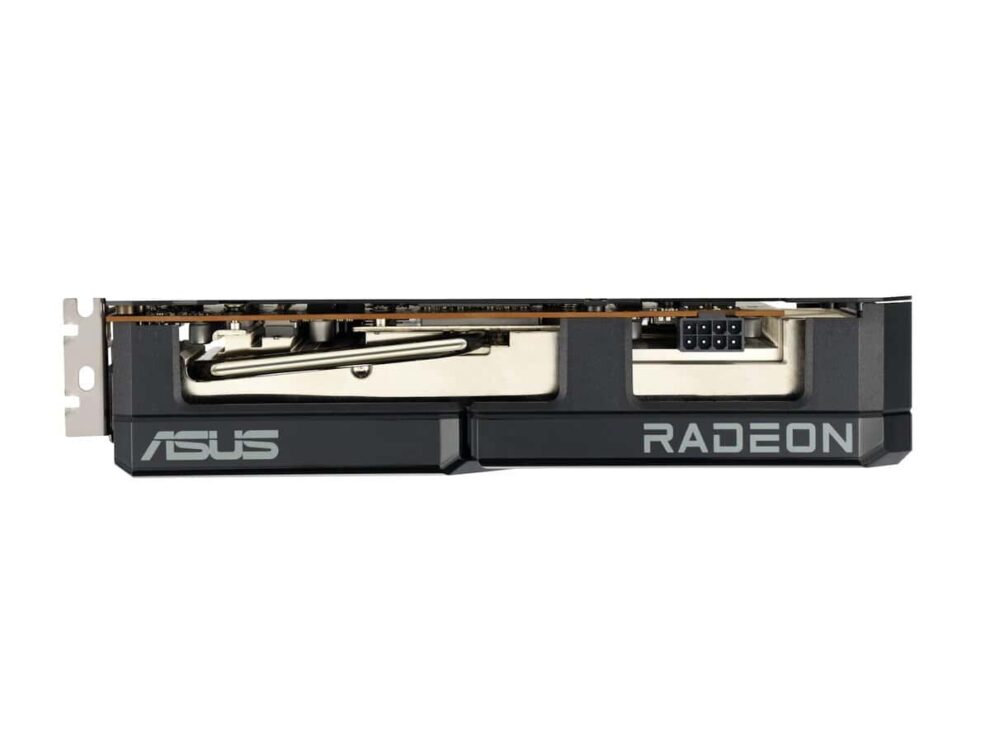

| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| More info: | [https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7600-o8g-evo/techspec/](https://www.asus.com/motherboards-components/graphics-cards/dual/dual-rx7600-o8g-evo/techspec/) |
