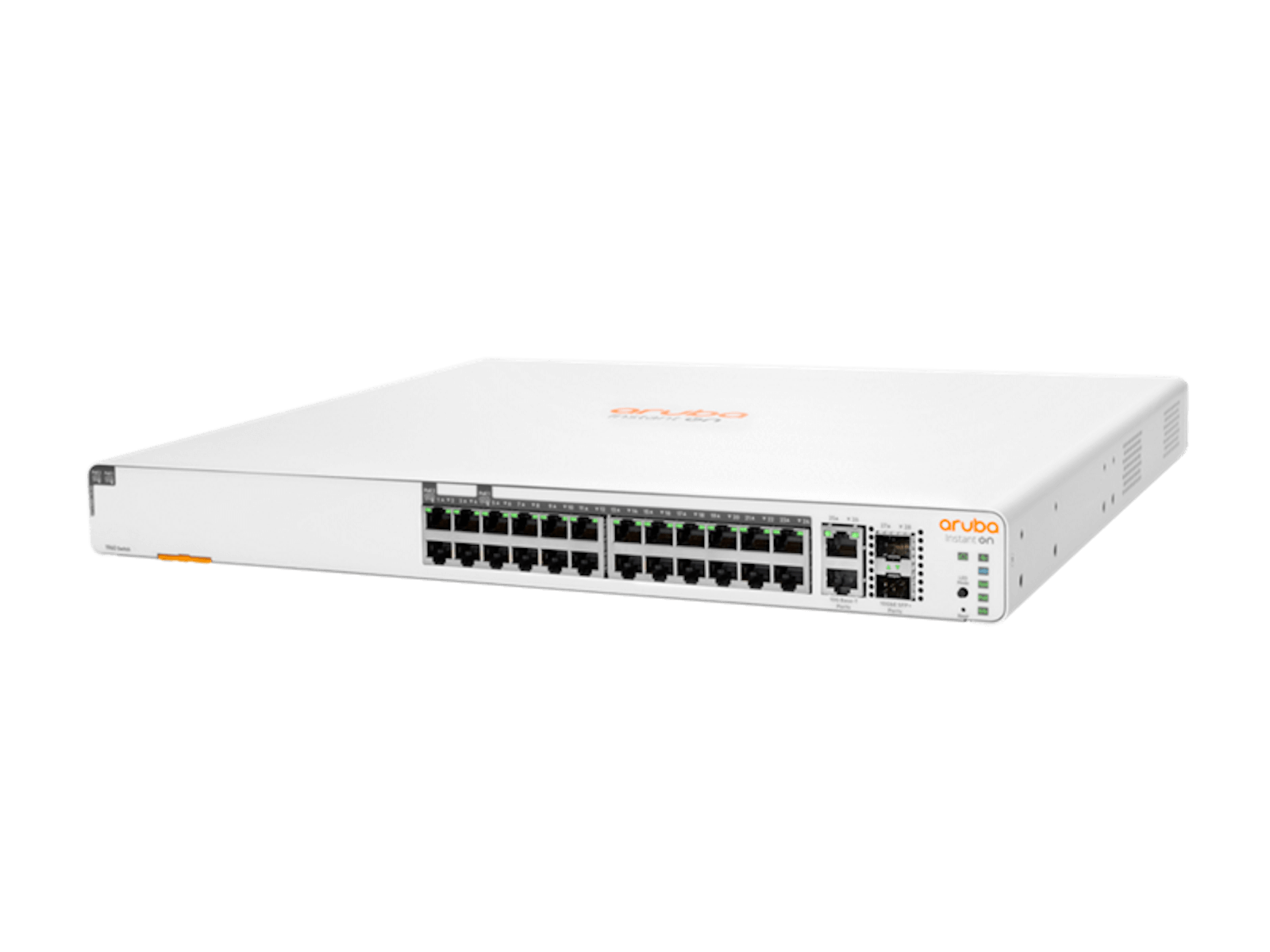

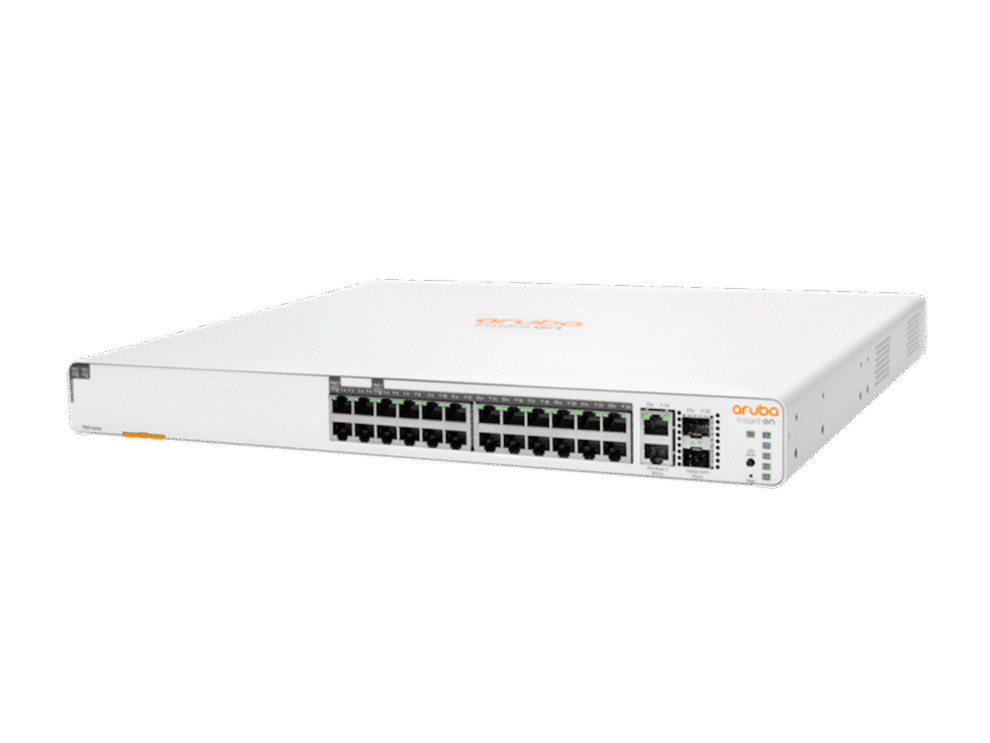

DifferentiatorHigh performance, smart-managed stackable switch designed for small and growing businesses, fast and easy set-up and security you can trust.
Stacks up to four 1960 switches at 1G and 10G speeds and enables management through a single IP address, simplifying network operations, supporting both local and cloud-managed stacking.
Using either local web GUI, Instant On mobile app or cloud-based
web portal, you can quickly set up, monitor and manage the
switches from anywhere at anytime.
Power consumptionMaximum:
100-127V: 500W
200-220V: 480W
Idle:
100-127V: 40W
200-220V: 80W
Input voltage100 – 240 VAC
Ports24 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports
Switching capacity128 Gbps
Stacking capabilities4H height
Throughput95 Mpps
Memory and processorSingle Core ARMv7 Cortex-A9 @800MHz
PoE capabilityTotal 370 W PoE Power (Up to 240 W of Class 6 or 370 W of Class 4 PoE)
Operating temperature0-40°C, 0-10,000 ft
Management featuresAruba Instant On Cloud; Web browser; SNMP Manager
