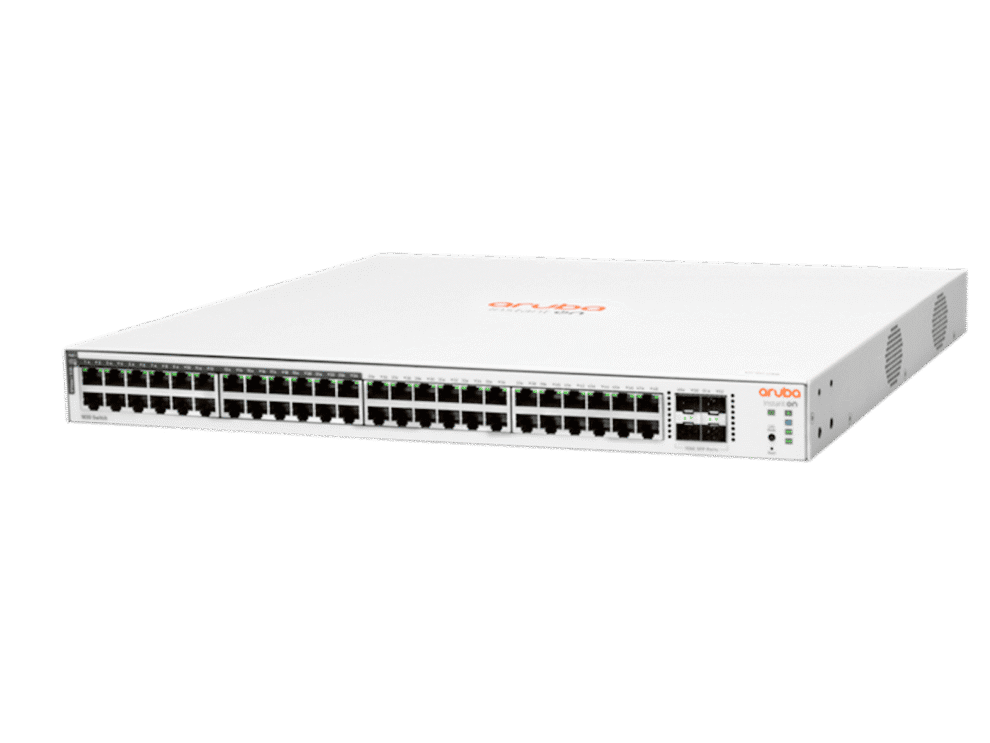

DifferentiatorEntry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power.
Power consumptionMaximum: 100-127V: 462.5W 200-220V: 452.5W; Idle: 100-127V: 25.8W 200-220V: 25.4W
Input voltage100 – 240 VAC
Ports48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports
Switching capacity104 Gbps
Throughput77.37 Mpps
Memory and processorARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
PoE capability370W
Operating temperature0-40°C, 0-10,000 ft
Management featuresAruba Instant On Cloud; Web browser; SNMP Manager
