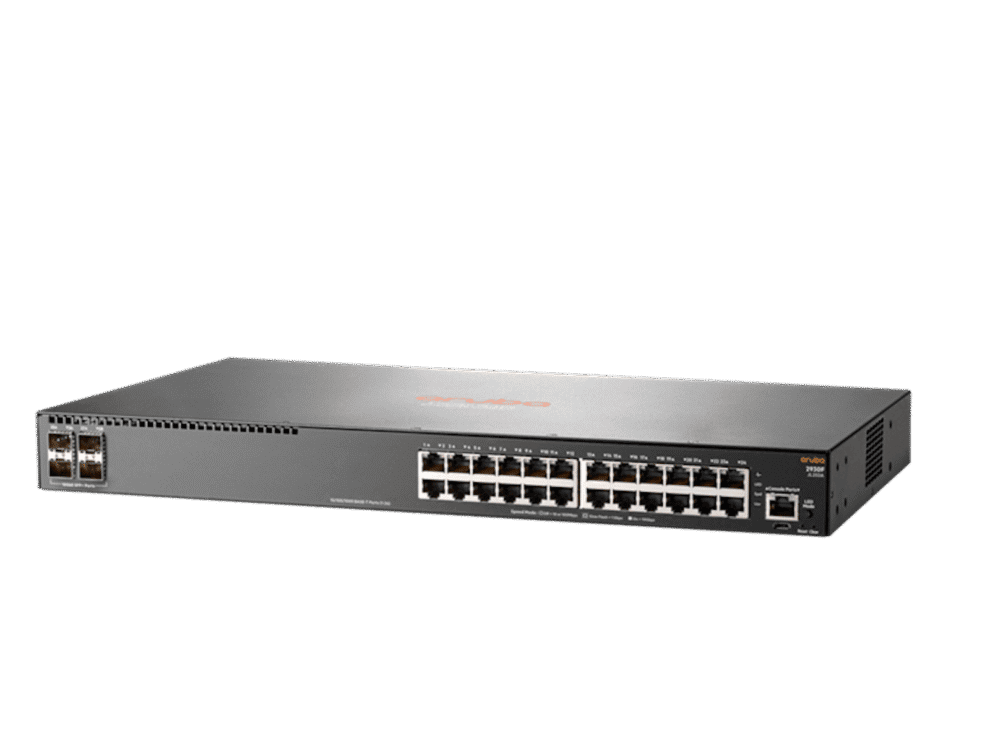

DifferentiatorPopular Aruba 28-port Gig + 10G access switch.
This model has 24x 10/100/1000 ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity.
Power consumption29.3 W (maximum)
Heat dissipation100 BTU/hr (105.5 kJ/hr)
Input voltage100 – 127 / 200 – 240 VAC, rated
Ports(24) RJ-45 autosensing 10/100/1000 ports
(4) SFP+ 1/10GbE ports
PHY-less
Latency1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs
Switching capacity128 Gbps
Throughputup to 95.2 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC
Management featuresAruba AirWave
Central Network Management
IMC – Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)
