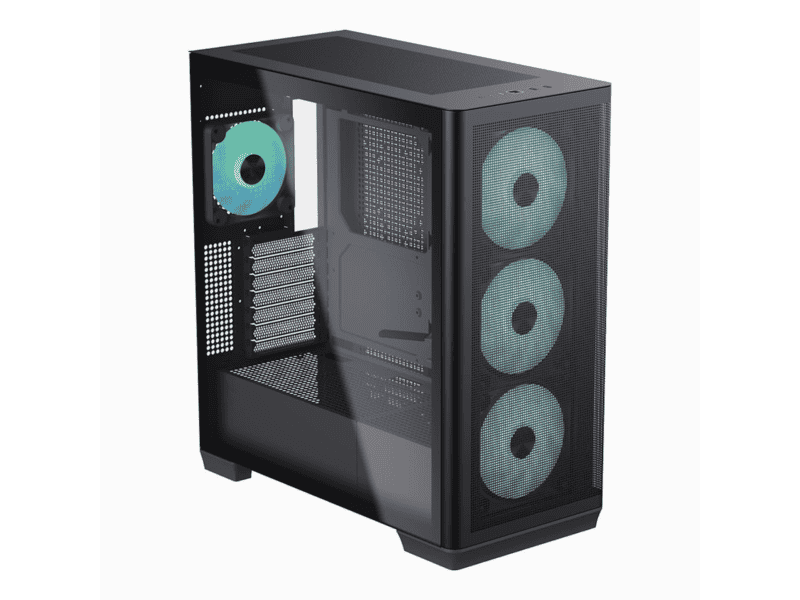

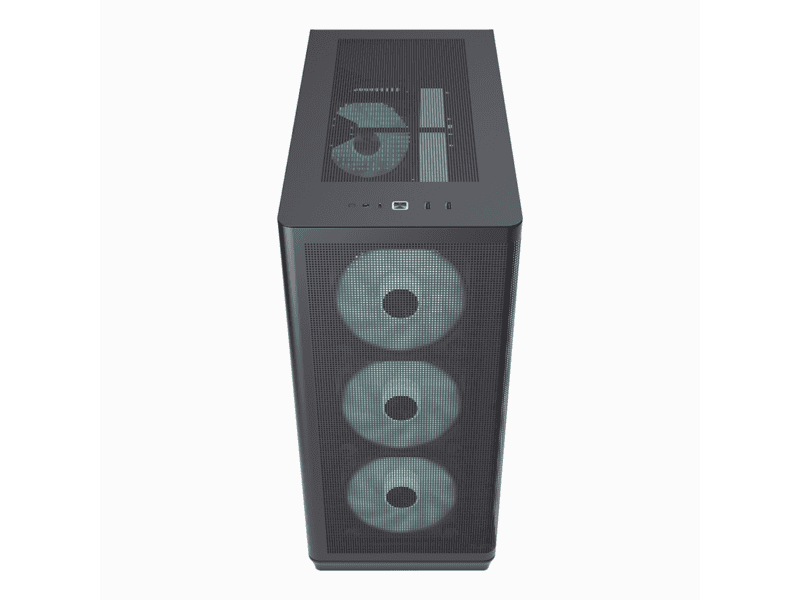

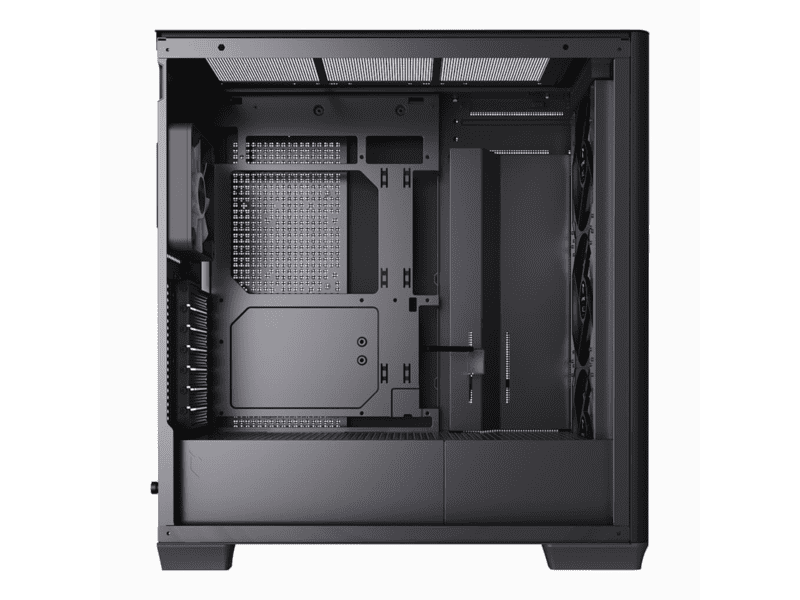

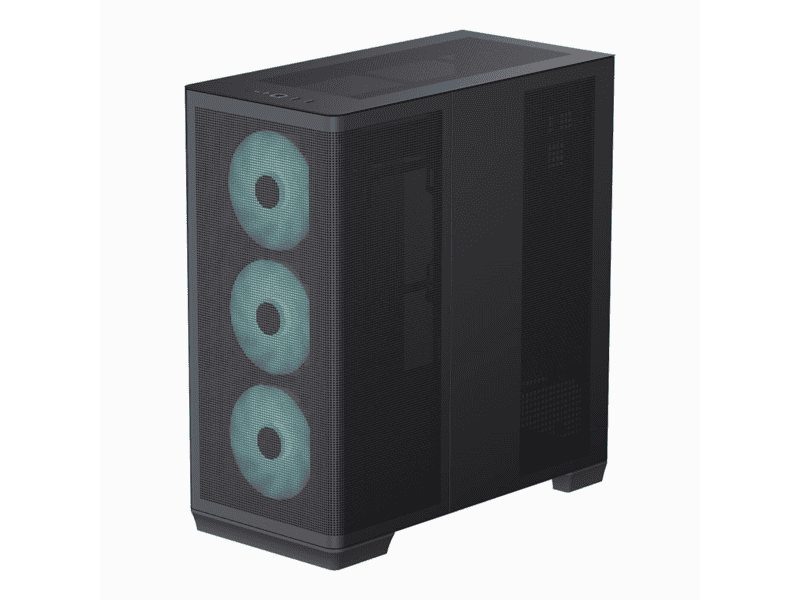

C1-R is a premium mid-tower ATX case that brings together a beautiful new look, robust build quality, and impressive out-of-the-box cooling performance. This refreshed edition features a redesigned top cooling bracket and supports ASUS & MSI ATX motherboards with backward-facing connectors for exceptional cable management. This iF and Red Dot Design Award-winning case excels in cooling, airflow, and compatibility. APNX never compromises on quality.
| Case Type | Mid Tower |
| Colors | Black |
| Body Material | SGCC |
| Front Panel Material | SECC |
| Steel Thickness | 0.8mm |
| Motherboards | ATX/Micro ATX/mini-ITX |
| Case Dimensions (Internal) | 230 x 477 x 440 mm (W x H x D) |
| Case Dimensions (Overall) | 230 x 502 x 464 mm (W x H x D) |
| 3.5” Drive Bays | 3 Max. (3 x 3.5”/2.5″) |
| 2.5” Drive Bays | 3 Max. (3 x 2.5”/3.5”) |
| Expansion Slots | 7 |
| GPU Clearance | Supports GPU up to 395mm |
| CPU Cooler Clearance | Supports CPU cooler up to 166mm |
| Air Cooling | Front: 120mm x 3 or 140mm x 3 (Max.) (C1-R-BK-v1 / C1-R-WT-v1 / C1-R-CF-v1 : 120mm PWM ARGB Fan x 3 included ; C1-R-BK-v3 / C1-R-WT-v3 / C1-R-CF-v3 120mm PWM Fan x 3 included) Top: 120mm x 3 or 140mm x 2 (Max.) Side: 120mm x 3 (Max.) Rear: 120mm x 1 (Max.) (C1-R-BK-v1 / C1-R-WT-v1 / C1-R-CF-v1: 120mm PWM ARGB Fan x 1 included ; C1-R-BK-v3 / C1-R-WT-v3 / C1-R-CF-v3 120mm PWM Fan x 1 included) CPU: 120mm x 1 (Max.) |
| Liquid Cooling | Top: 120/240/280/360mm Radiator (Optional) Side: 120/240/360mm Radiator (Optional) Rear: 120mm Radiator (Optional) |
| I/O Ports | USB3.0 x 2 | USB C x 1 | HD Audio & Mic. |
| Internal Cable Management Depth | 40mm |
| Power Supply | ATX PSU (Including cables, up to 270mm) (Optional) |
