Native Resolution: 1024 x 768
Maximum Resolution: 1920 x 1200
Standard Mode Brightness: 4800 lm
Low Mode Brightness: 3600 lm
Native Aspect Ratio: 4:3
Contrast Ratio: 20,000:1
Throw Ratio: 1.51 to 1.97 (1651 mm@2000 mm)
Digital Zoom: 2x
Vertical Keystone Correction: -40°/+40°
Maximum Vertical Sync: 120 Hz
Minimum Vertical Sync: 24 Hz
Maximum Horizontal Sync: 100 kHz
Minimum Horizontal Sync: 15 kHz
Colour Supported: 1.07 Billion Colors (30-bit)
Uniformity: 85%
Graphic Mode: XGA
Standard Mode Brightness Disclaimer: Compliant with ISO 21118 standard
Projection Lens
Minimum Lens Aperture: f/2.59
Maximum Lens Aperture: f/16.88
Minimum Focal Length: 16.88 mm
Maximum Focal Length: 21.88 mm
Minimum Diagonal Image Size: 635 mm
Maximum Diagonal Image Size: 7.62 m (300″)
Minimum Projection Distance: 1 m
Maximum Projection Distance: 9.20 m
Optical Zoom: 1.3x

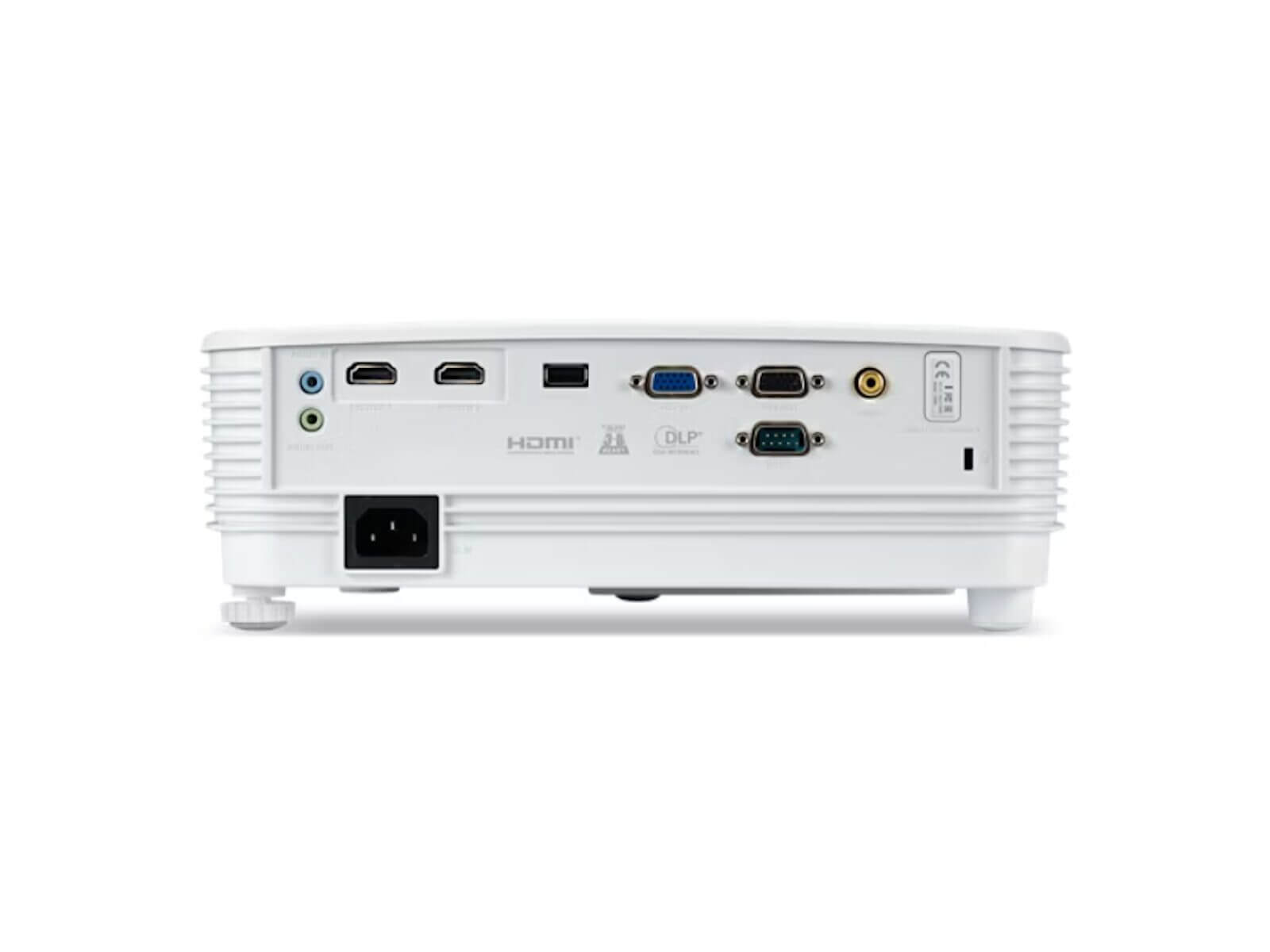

Interfaces/Ports
USB: Yes
Composite Video: Yes
Number of VGA Inputs: 1
VGA In: Yes
Number of VGA Outputs: 1
VGA Out: Yes
Number Of Audio Inputs: 1
Number Of Audio Outputs: 1
Audio Line In: Yes
Audio Line Out: Yes
RS-232 (D-sub): 1
Audio
Number of Speakers: 1
Speaker Output Power: 10 W
Speaker Output Mode: Mono
Network & Communication
Wireless Capability: EZCast, Miracast Wi-Fi
