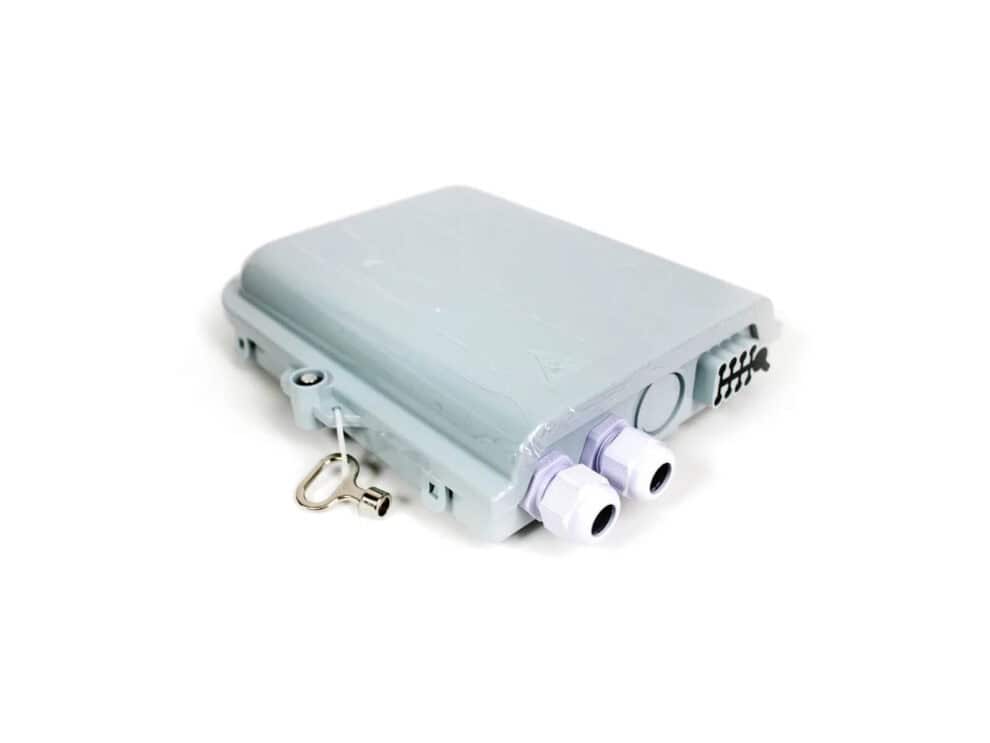

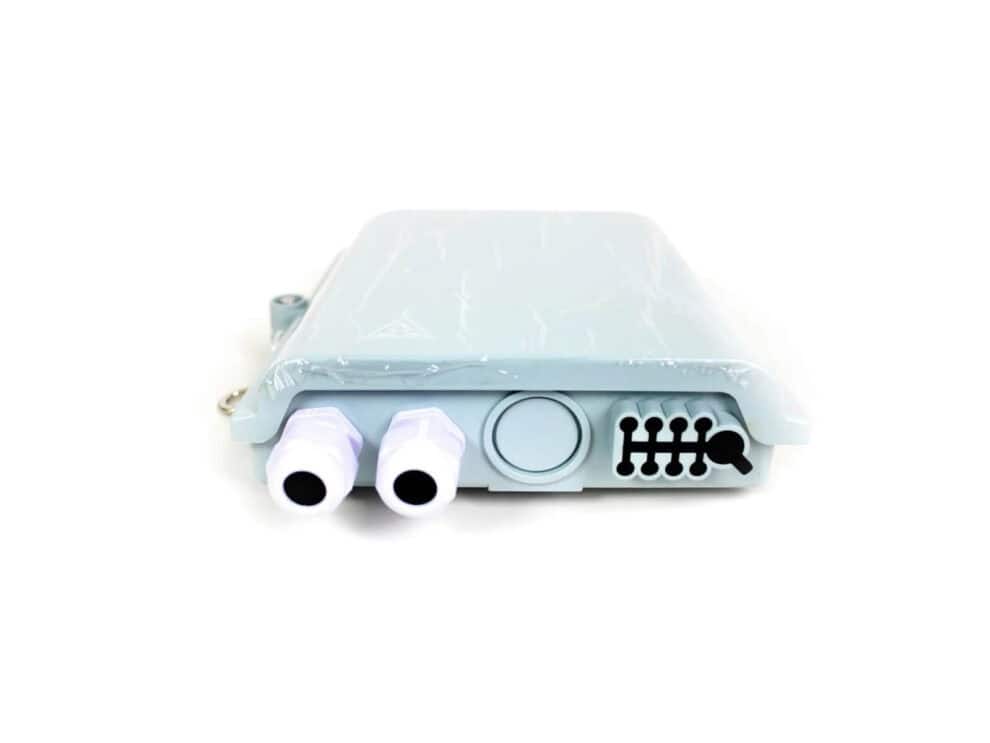

title: Acconet Distribution Box 8 Core
date: 2024-11-14T08:05:55Z
modified: 2026-05-23T08:01:37Z
permalink: "https://tech.co.za/product/acconet-distribution-box-8-core/"
type: product
status: publish
excerpt: "Total enclosed structure, be in nice shape\\nProtects and manages cable effectively\\nSecured with anti-theft locking mechanism"
wpid: 520880
product_brand:
  - Acconet
product_type:
  - simple
product_visibility:
  - featured
product_cat:
  - Networking
featured_image: "https://tech.co.za/wp-content/uploads/2024/11/Acconet-Distribution-Box-8-Core.jpg"
---

- PLC type: Steel tube splitter
- Work Temperature: -40 °C ~ +85 °C
- Relative Humidity: ≤ 85% (+30 °C)
- Atmospheric Pressure: 70Kpa~106Kpa
- Insert Loss: ≤ 0.2dB
- UPC Return Loss: ≥ 50dB
- APC Return Loss: ≥ 60dB
- Insert and Pull-out Life: ≥ 1000 times
- Maximum diameter of supported optical cable: ≤φ12mm
- Insulation: The grounding device is insulated with the Termination box, IR ≥1000m Ω/500V (Direct current）
- Withstand Voltage: Between the grounding device and the box body, the withstand voltage is over 3000V/Min, no breakdown and ashover. U ≥3000V (direct current)
