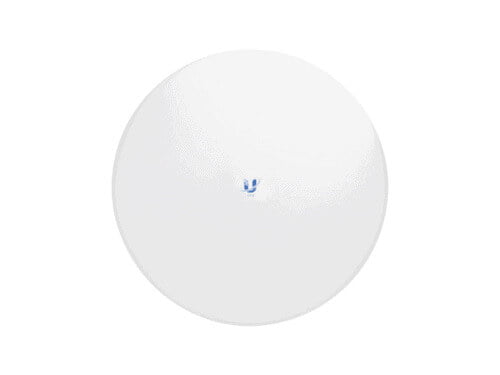

Ubiquiti’s LTU-PRO is an integrated, 24dBi, dish antenna. It features Ubiquiti’s LTU technology. This technology is not impeded by the limitations of standard 802.11 Wi‑Fi technology and offers Channel Width Flexibility (10/20/30/40/50 MHz). Its custom LTU silicon and radio architecture provide up to 600+ Mbps of real TCP/IP throughput.
*Note: This device currently only functions as a Point-to-Multi-Point CPE and cannot be used in Point-to-Point or Access Point modes.
Specifications
Antenna Gain: 24dBi
Beam-width: 14°
Data Rate: Up to 600Mbps
Ethernet Ports: 1x 10/100/1000
Hardware Button: Reset
Max. Power Consumption: 9W
Mounting: Pole-Mount
Operating System: LTU
Operating Temperature: -40°C to 60°C
PoE Input: 24V Passive PoE
PoE Output: None
Power Input: 24V 0.5A Gigabit PoE Injector (Included)
Serial Interface: None
SIM Slots: None
Supported Voltage Range: 22V-26V
USB Ports: None
Dimensions: 316.5 x 316.5 x 174.3mm
Weight: 1.3kg
