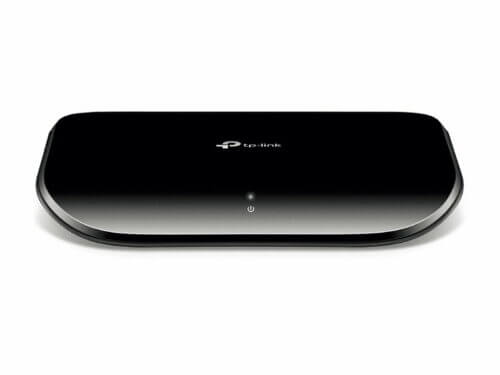

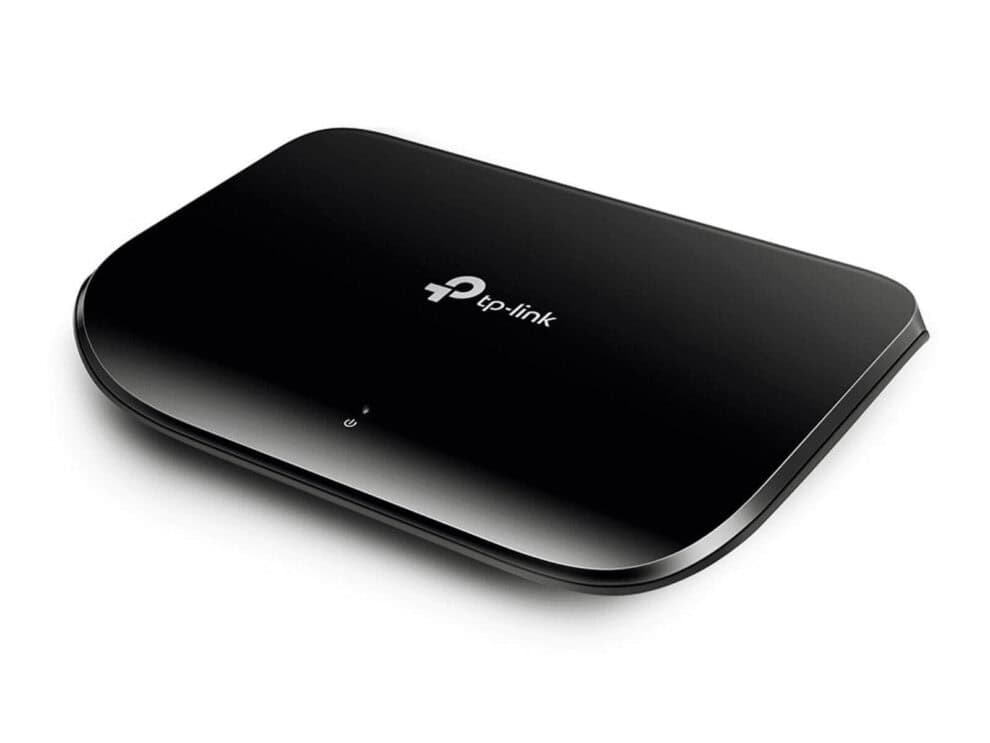

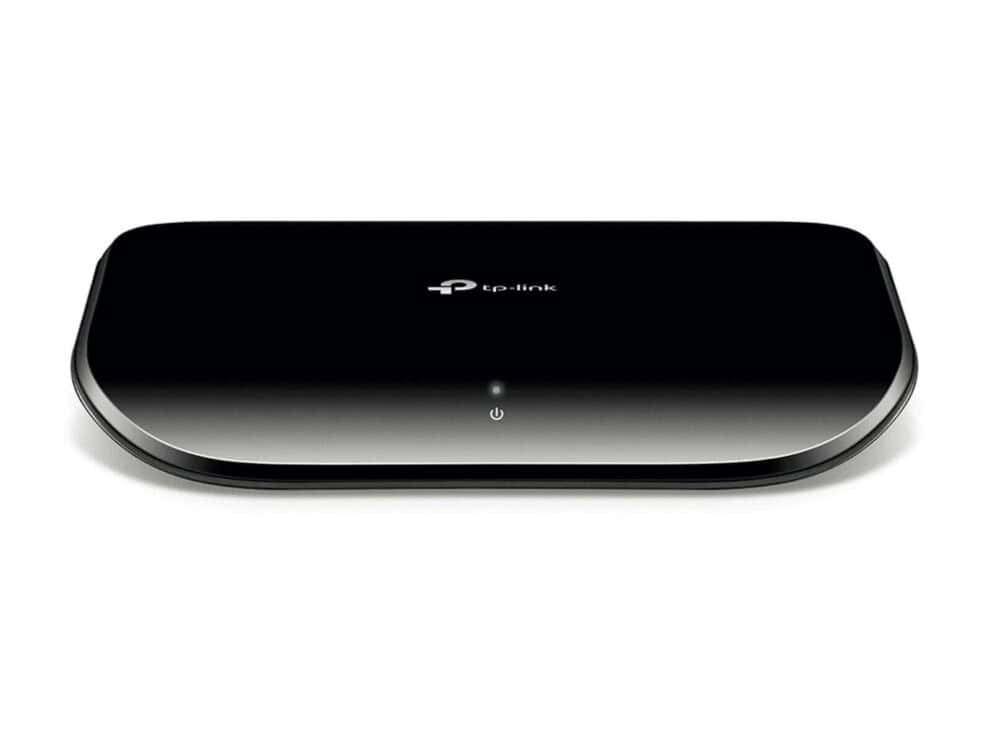

The TP-Link 5-Port Gigabit desktop switch TL-SG1005D provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG1005D adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG1005D can save power consumption, making it an eco-friendly solution for your home or office network.

- 5 Gigabit Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
- Green Ethernet technology saves power consumption
- IEEE 802.3x flow control provides reliable data transfer
- Plastic case, desktop or wall-mounting design
- Plug and play, no configuration required

**HARDWARE FEATURES**

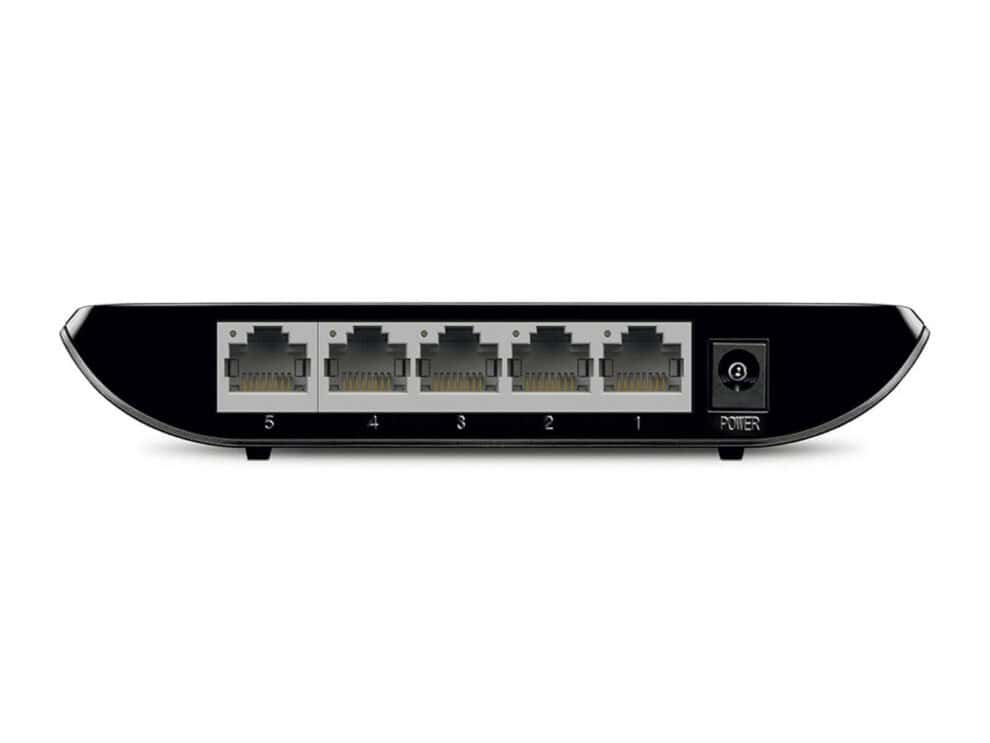

Interface: 5 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity: Fanless
Physical Security Lock: No
External Power Supply: External Power Adapter (Output: 5VDC / 0.6A)
Dimensions ( W x D x H ): 5.5×3.5×0.9 in. (140×88×23 mm)
Max Power Consumption: 3.1W (220V/50Hz)
Max Heat Dissipation: 10.57 Btu/hr
