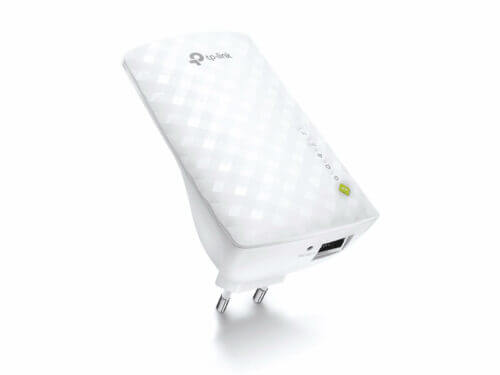

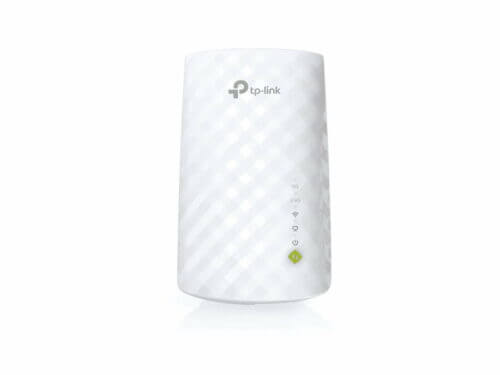

RE200 expands your existing WiFi coverage with next generation 11AC WiFi technology. It works with any standard WiFi router and creates stronger dual band connections in hard-to-reach areas, allowing you to enjoy seamless wireless coverage throughout your home or office.
- Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly.
- EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage◇
- Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
- Dual band speeds up to 750 Mbps†
- Miniature size and wall-mounted design make it easy to deploy and move flexibly
- Ethernet port allows the Extender to function as a wireless adapter to connect wired devices
HARDWARE FEATURES
Standards and Protocols: IEEE802.11ac,IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Interface: 1 x 10/100M Ethernet Port (RJ45)
Button: RE (Range Extender) Button, Reset Button
Power Consumption: About 6.5W
Dimensions ( W x D x H ): 4.3x 2.6 x 3.0in. (110.0 x 65.8 x 75.2mm)
Antenna: 3 x internal
WIRELESS FEATURES
Frequency: 2.4GHz & 5GHz
Signal Rate: 5GHz:Up to 433Mbps
2.4GHz:Up to 300Mpbs
Reception Sensitivity: 2.4G:
270M: -70dBm@10% PER
130M: -70dBm@10% PER
108M: -73dBm@10% PER
54M: -75dBm@10% PER
11M: -86dBm@8% PER
6M: -92dBm@10% PER
1M: -94dBm@8% PER
5G:
390M: -60dBm@10% PER
29.3M: -83dBm@10% PER
180M: -64dBm@10% PER
13.5M: -87dBm@10% PER
78M: -68dBm@10% PER
6.5M: -90dBm@10% PER
54M: -75dBm@10% PER
6M：-90dBm@10% PER
Transmit Power: < 20 dBm (EIRP) Wireless Modes: Range Extender Wireless Functions: WMM (Wi-Fi Multimedia) Wireless Statistic Domain Login Function Wireless Security: 64/128/152-bit WEP WPA-PSK / WPA2-PSK
