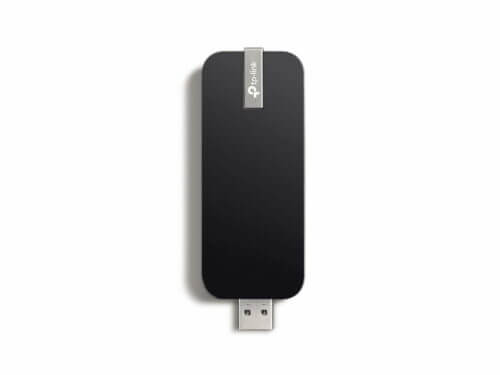

Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.
- Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless – 2.4GHz and 5GHz bands for flexible connectivity
- High gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port – Up to 10x faster transfer speeds than USB 2.0
- WPS Button – Easy wireless security encryption at the push of the WPS button
HARDWARE FEATURES
Interface: USB 3.0
Button: WPS button
Dimensions ( W x D x H ): 92.47×31.55×13.9mm
Antenna: 2 High Gain External Antennas
Antenna Type: Omni Directional
WIRELESS FEATURES
Wireless Standards: IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency: 5GHz
2.4GHz
Signal Rate: 5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity: 5GHz：
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11nHT20：-74dBm
11nHT40：-71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm
2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm
Transmit Power: <20dBm (EIRP) Wireless Modes: Ad-Hoc / Infrastructure mode Wireless Security: Support 64/128 bit WEP, WPA-PSK/WPA2-PSK Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
