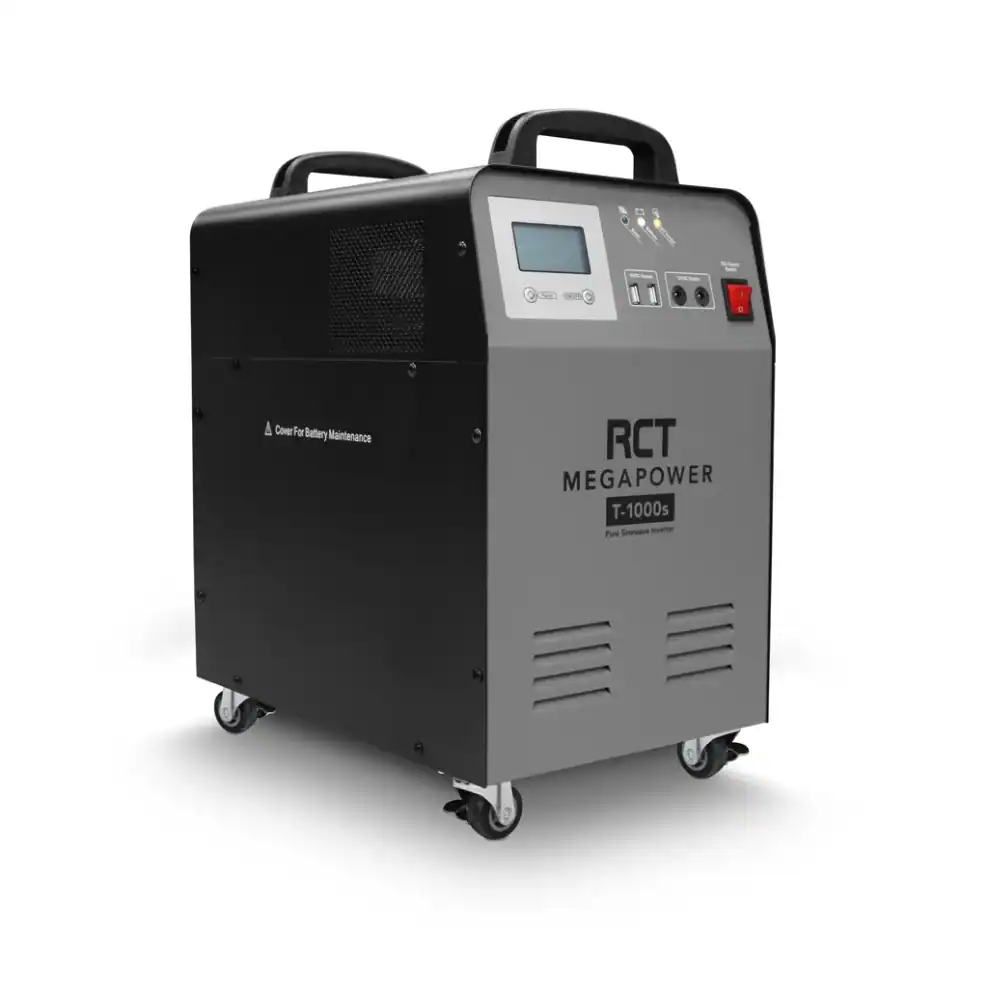

RCT MegaPower 1KVA/1000W Inverter Trolley With 1 x 100AH Battery
RCT MP-T1000S
Pure Sinewave for Sensitive Electronics & Motorised Loads
Microprocessor Control Optimizes Reliability
Input Power Factor Correction
Output Power Factor 1.0
Comprehensive Display Allows Easy Monitoring & Access of UPS Status
Built-in MPPT solar charger
2 x USB 5 V DC output and 2 x 12 V DC output
Battery cut off switch for safety
Pre-installed batteries
Specifications
RATED POWER: 1000 W
OUTPUT VOLTAGE: 220 VAC
OUTPUT FREQUENCY: 50 / 60 Hz
OUTPUT WAVEFORM: Pure Sine Wave
SOLAR INPUT
MAXIMUM PHOTOVOLTAIC
VOLTAGE (VDC): ? 25 V
CHARGE VOLTAGE (VDC): 10 V – 25 V
RATED CHARGE CURRENT (A): 30 A
MAXIMUM POWER (Wp): 360 Wp
VOLTAGE OVERCHARGE PROTECTION
(VDC): 14.2 V
VOLTAGE OVERCHARGE RECOVERY
(VDC): 14.0 V
VOLTAGE OF FLOATING CHARGE (VDC):
13.7 V
OUTPUT
AC OUTPUT:
2 x SA 3 Pin Socket – 230 V 50 Hz,
1000 VA / 1000 W Max. (Combined)
USB OUTPUT:
2 x USB Type A Port – 5 VDC 2 A Max.
DC OUTPUT:
2 x 12 V DC Port 2 A Max.
BATTERY TYPE:
1 x 12 DC 100 AH Deep Cycle
VRLA Gel Battery

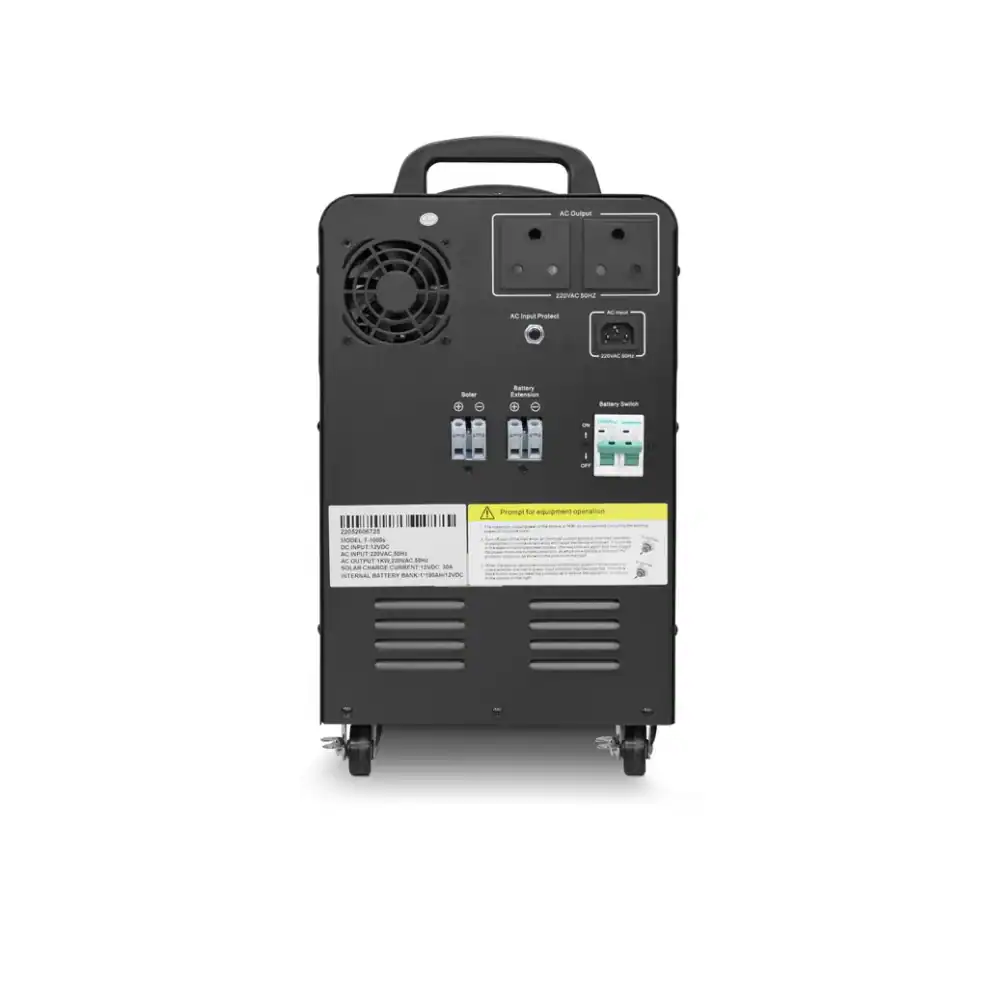

Ports and Interfaces
- AC Output
- Smart Cooling Fan
- AC Input
- Solar PV Input
- Battery Extension
- Battery Switch
- Led Indicator
- LCD Display
- Function Buttons
- On / Off Buttons
- 5VDC Output
- 12VDC Output
- DC Output Switch
What’s in the box
1 x RCT MP-T1000S
Warranty Electronics 1 year, Batteries 6 Month
Warning:
Charging and discharging a battery multiple times a day will significantly deteriorate its performance. Please note the limitations of each battery technology:
- Lead-acid batteries can only be discharged up to 50% before irreversible damage occurs.
- Gel lead-batteries can often be discharged up to 70% before irreversible damage occurs.
- Lithium batteries can be fully discharged if they are protected by a Battery Management System.
Due to the above limitations, loss of battery capacity is not covered under warranty.
