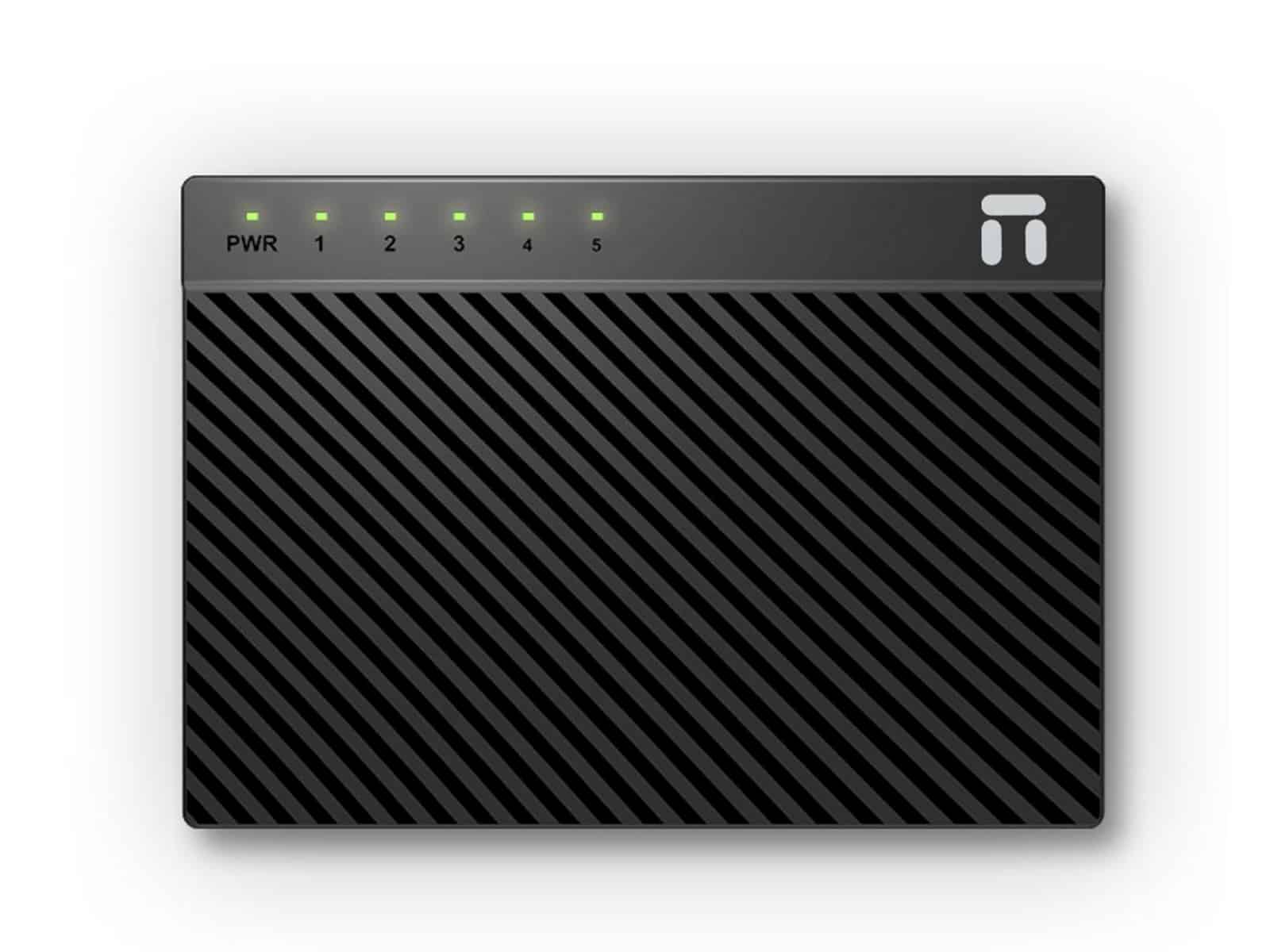

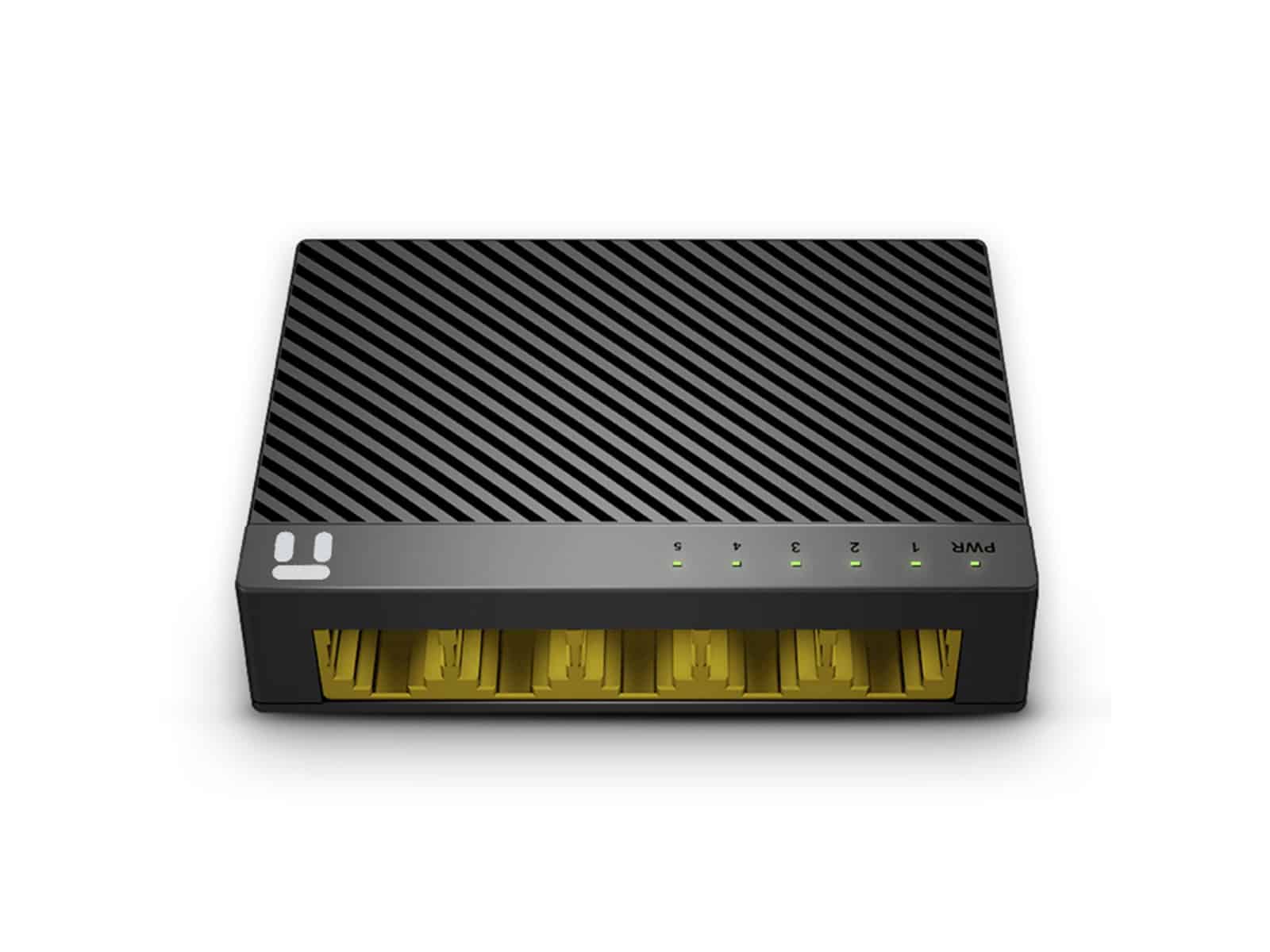

Switch ST3105GC provides 5 10/100/1000Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. This Switch provides you with a low-cost, easy-to-use, high-performance, seamless and standard upgrade to improve your old network to a 1000Mbps network. It will boost your network performance with up to 2000Mbps full duplex data transfer speed.
| Hardware | |
| Interface | 5* 10/100/1000M TX ports |
| LED | PWR, LAN1-LAN5 |
| Power Supply | DC 5V/600mA (Output) |
| Dimensions (L x W x H ) | 85 x 75x 22mm |
| Cabling Type | 10Base-T: UTP Cat.3 or up 100Base-TX: UTP Cat.5 or up 1000Bast-T: UTP Cat.5 or up |
| Software | |
| Standard | IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3ab 1000Bast-T |
| Access Method | CSMA/CD |
| Transmission Method | Store and Forward |
| Switch Architecture | Non-blocking |
| Data Transmission Rate | 10/100Mbps(Half-duplex) 20/200/2000Mbps(Full-duplex) |
| MAC Address Table | 2K |
| Others | |
| Certification | FCC, CE |
| Environment | Operating Temperature: 0℃~40℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
| Package | 1* ST3105GC 1* 5V/600mA Power Adapter 1* Quick Installation Guide |
