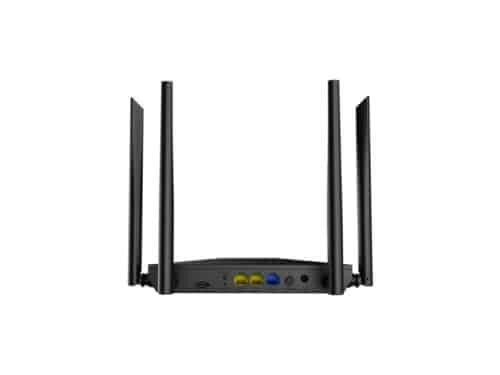

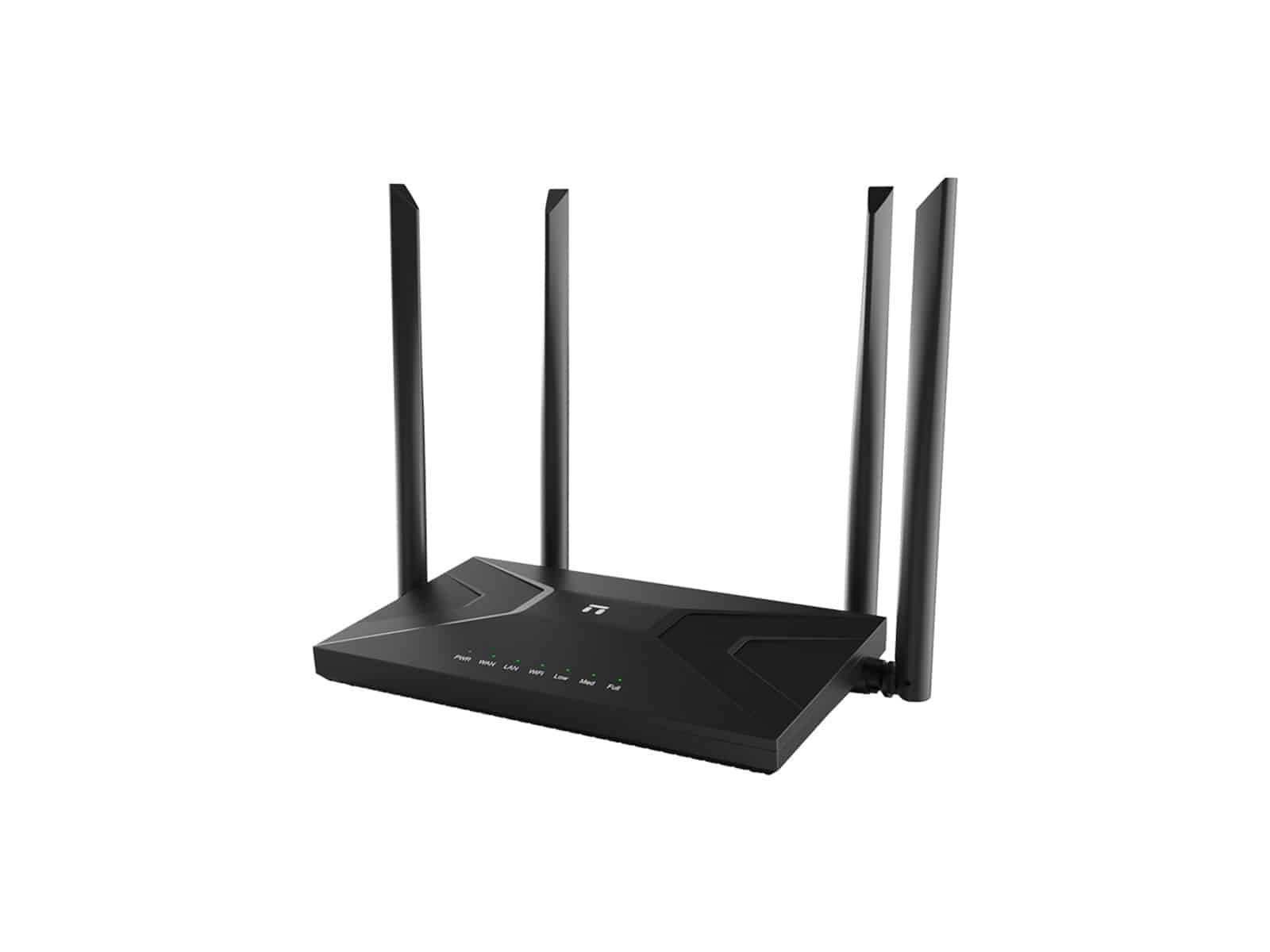

The Netis 4G LTE router MW5360 is equipped with a 4G LTE module, which allows you to access the Internet with a SIM card. With the separate WiFi antenna systems and unique detachable 4G antenna ports design, it allows you to put the 4G antennas anywhere inside or outside of your house, which brings you a better 4G speed and better WiFi performance. MW5360 also offers a wired WAN port to be used as a common wireless router.
| Wireless | |
| Standards | IEEE 802.11b/g/n 2.4GHz |
| Signal Rate | Up to 300Mbps 2.4GHz |
| Frequency Range | 2.4-2.4835GHz; |
| Transmit Power | 20dBm(MAX) |
| Data Transfer Rate | 802.11n:40MHz (300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)802.11g:(54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)802.11b:(11Mbps, 9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps) |
| Wireless Mode | AP/APR, Multi-SSID |
| Wireless Security | None / WEP /WPA-PSK/WPA2-PSK (TKIP/AES) |
| 4G LTE | |
| Band for LTE | FDD-LTE:B1/B3/B5/B8 TDD-LTE: B38/B39/B40/B41 HSPA/UMTS:B1/B5/B8 GSM/GPRS/EDGE:B3/B8 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 |
| Mode | FDD-LTE、TDD-LTE、TD-SCDMA、HSPA+、HSUPA HSDPA、UMTS、EVDO、EDGE、GPRS、GSM、CDMA1x |
| Card Speed | FDD-LTE: 150 Mbps DL, 50 Mbps UL TDD-LTE: 132 Mbps DL, 30 Mbps UL TD-HSUPA:2.8Mbps DL TD-HSUPA:2.2Mbps UL DC-HSPA+:42 Mbps DL HSPA+:21 Mbps DL HSUPA:5.76Mbps UL WCDMA: 384 Kbps DL, 384Kbps UL CDMA2000 EVDO: 3.1Mbps DL, 1.8Mbps UL EDGE: 237 Kbps DL, 118Kbps UL |
| Hardware | |
| Standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX |
| Interface | 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port 2*10/100Mbps Auto MDI/MDIX RJ45 LAN port SIM card slot |
| LED Indicators | Power, LAN All, WiFi/WPS,EWAN, LTE Strong, LTE Middle, LTE Weak |
| Buttons | Default, WPS |
| Antenna | 2* 5dBi WiFi antennas, 2 SMA detachable 4G antennas |
| Power Supply | DC 12V/1.0A(Output) |
| Dimensions (L x W x H ) | 182mm*108mm*25mm |
| WAN Type | WAN: DHCP / Static IP / PPPoE / Russia PPPoE / L2TP / PPTP / 3G&4G |
| Others | Bandwidth Control, Access Control, IPTV, Virtual Server, DMZ, VPN Pass-through, Dynamic DNS, Static Routing |
| Others | |
| Certification | FCC, CE, EAC |
| Environment | Operating Temperature: 0℃~40℃Storage Temperature: -40℃~70℃Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing |
| Package | 1* MW53601* 12V/1A Power Adapter1* Quick Installation Guide (Multilingual) |
