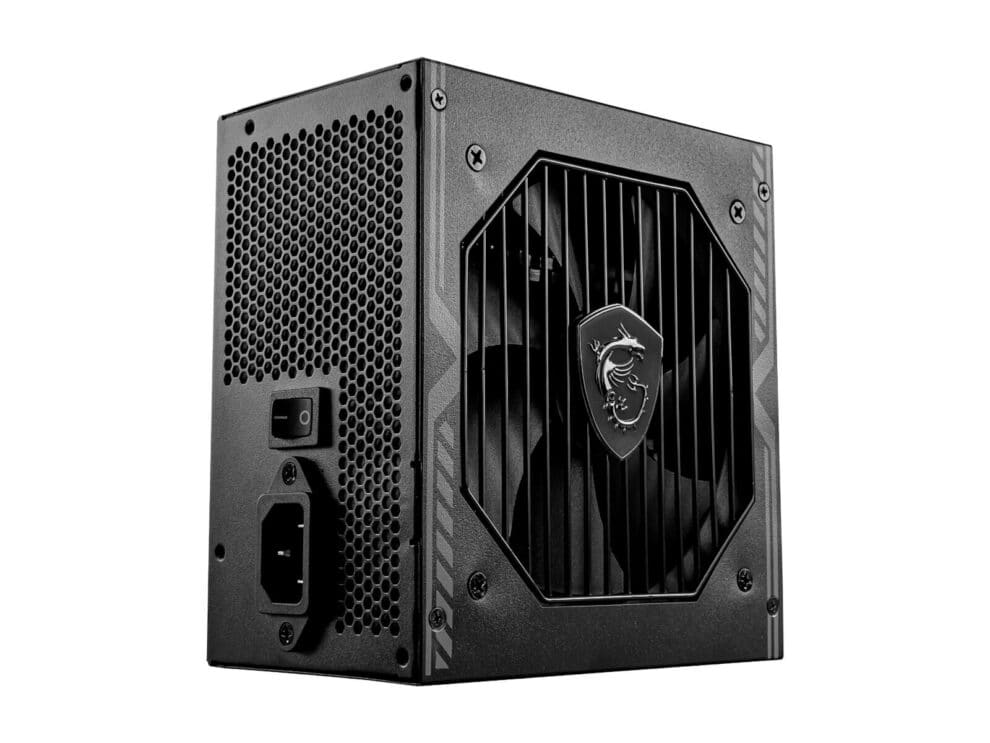

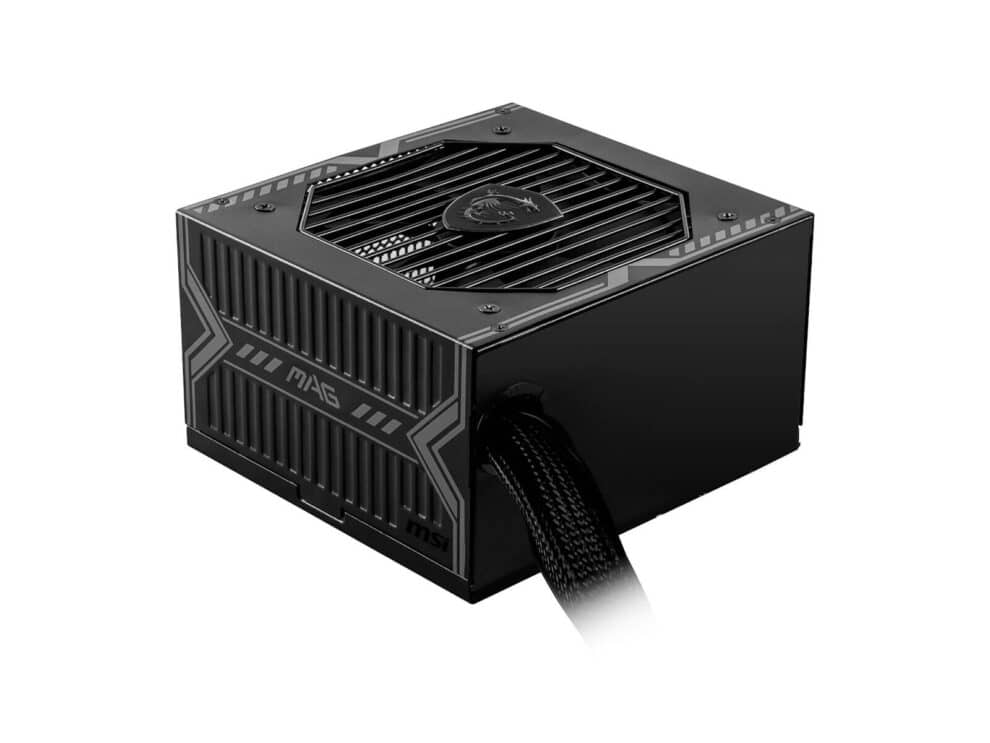

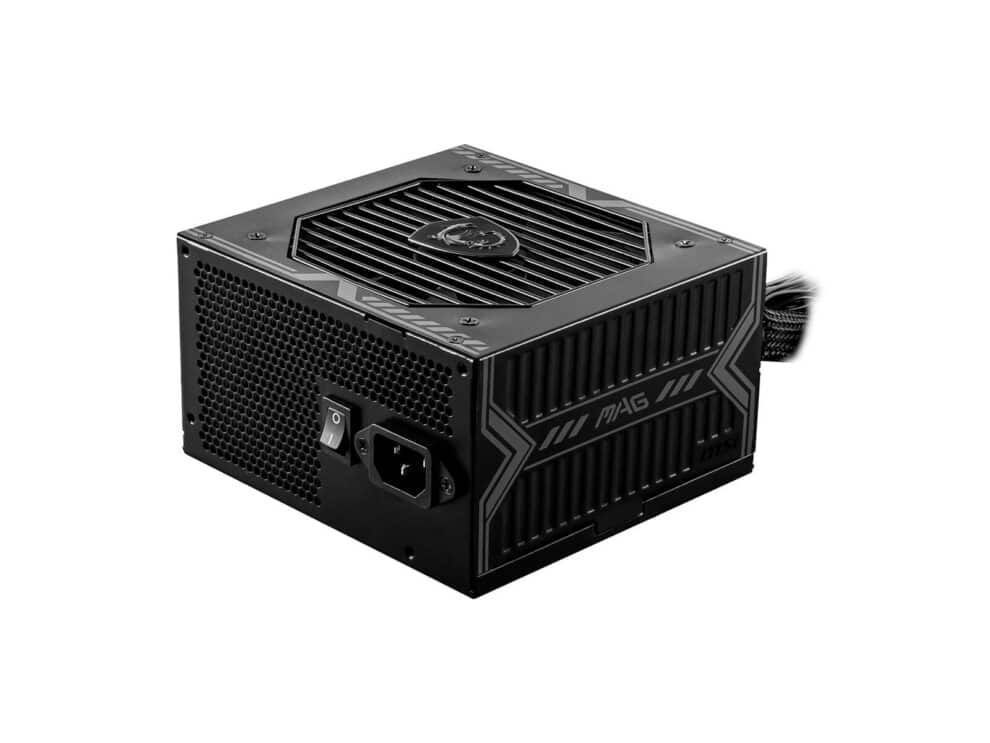

The MSI MAG series fights alongside gamers in pursuit of honour. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability. The MAG A750BN PCIE5’s distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A750BN PCIE5’s , any system has the power it needs to survive all challenges.
It has an output port that is compliant with PCIe 5.0, enabling to support the RTX 4070* series graphics cards. The efficiency of your power supply directly influences your system’s performance and power consumption. The 80 PLUS certification promises lower energy consumption and a qualified efficiency level.
The active PFC improves the efficiency of power output and provides a more stable environment for other PC components to operate in. Adopted DC to DC circuit design reduces the instability of output voltage, and adds stability to the supply of power.
Protection is designed to protect the unit mechanisms and provides comprehensive protection. Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment. The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FEATURES:
- PCIe 5.0 Ready (300W)
- 120mm Fan
- DC to DC power Design
- Active PFC Design
- Industrial level protection with OVP, OCP, SCP, OPP, OTP
SPECIFICATIONS:
- Efficiency Rating: 80 PLUS Bronze (up to 85%)
- Modular: No
- Fan Size: 120 mm
- Fan Bearing: Sleeve Bearing
- PFC Type: Active PFC
- Input Voltage Range: 100-240~
- Power Watt: 750W
- Input Frequency Range: 50~60 Hz
- Protection: OCP / OVP / OPP / OTP / SCP
- Connectors:
- ATX (24 pin) x 1
- EPS (4+4 pin) x 1
- PCI-E 5.0 (16 pin) x1 (300W)
- PCI-E (6+2 pin) x 2
- SATA (15 pin) x 5
- PERIPHERAL (4 pin) x 2
- FDD (4 pin) x 1
- Product Dimensions: 14 x 15 x 8.6 cm
WHAT’S IN THE BOX:
- MSI MAG A750BN PCIe 5 80PLUS Bronze 750W Non-modular Power Supply – Black x1
