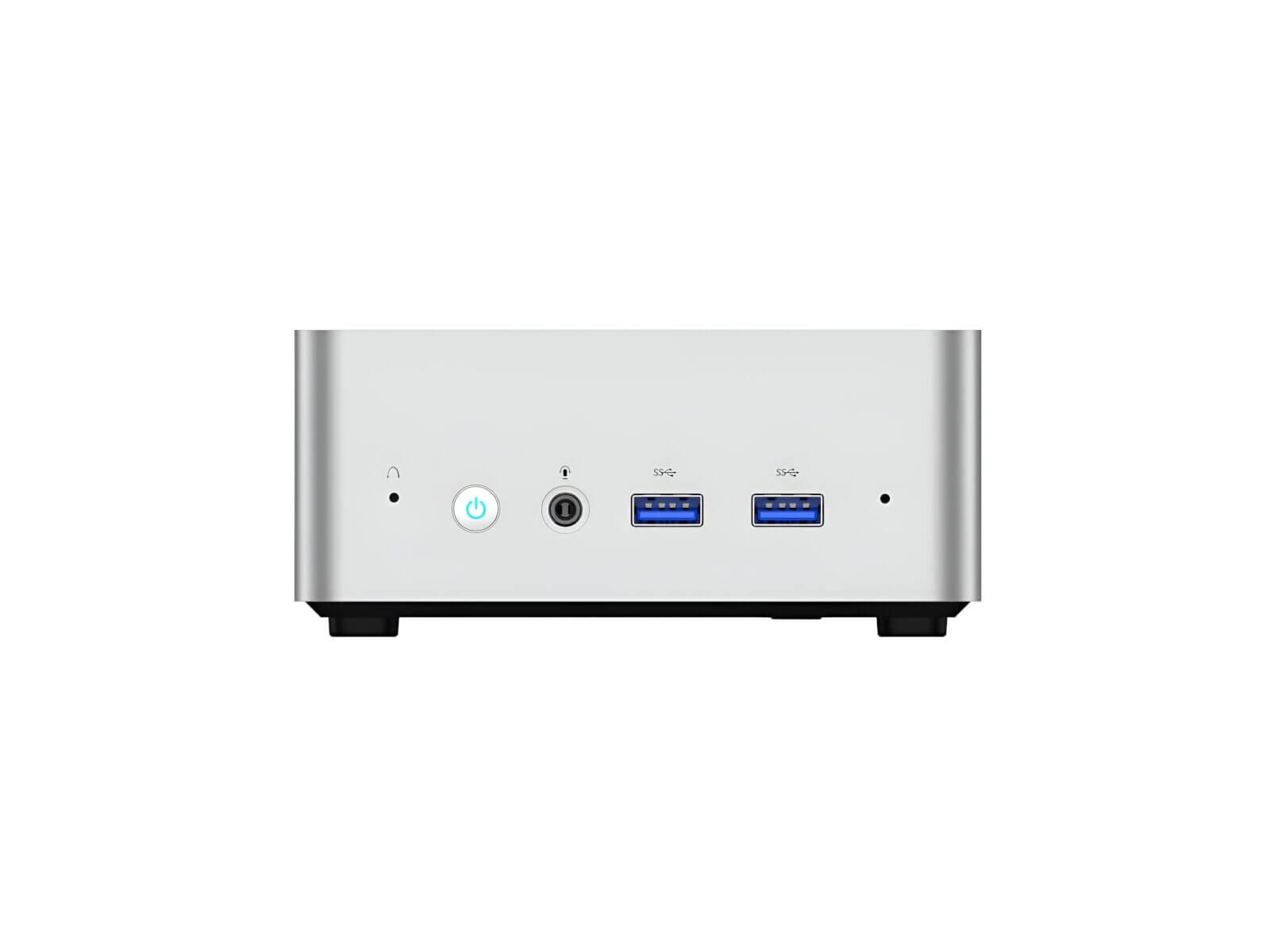

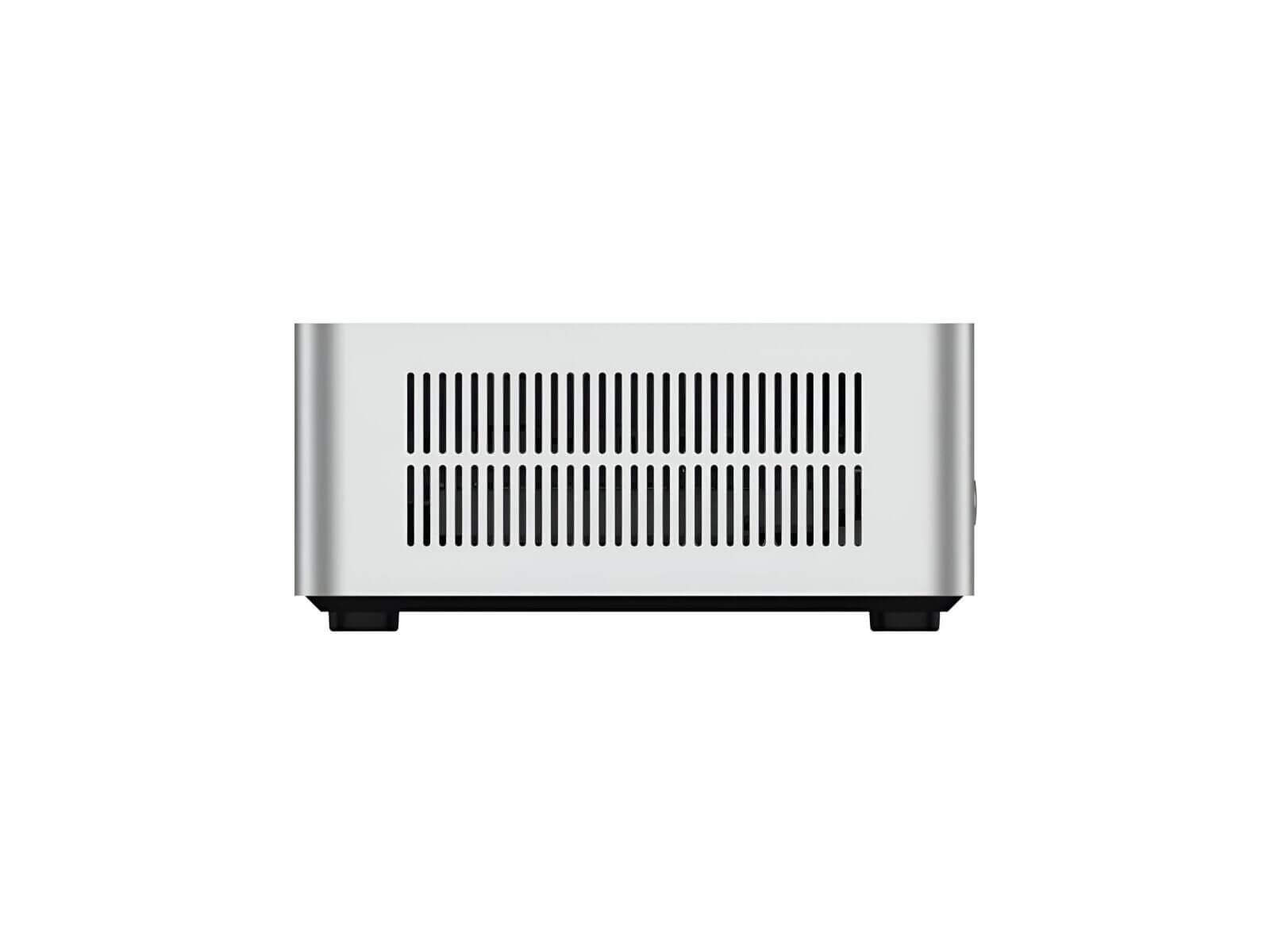

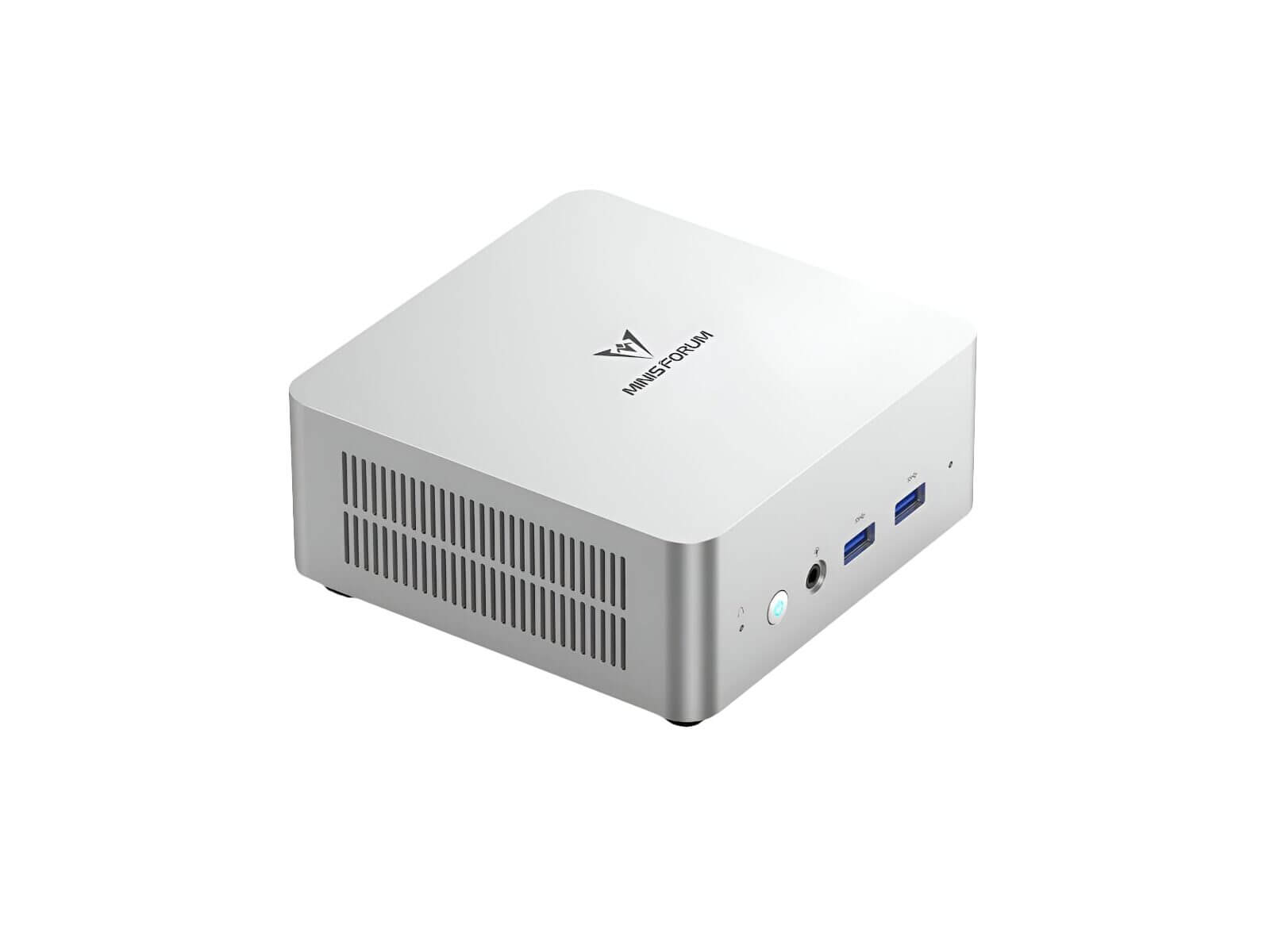

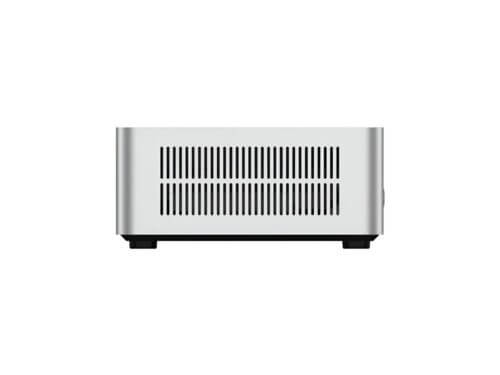

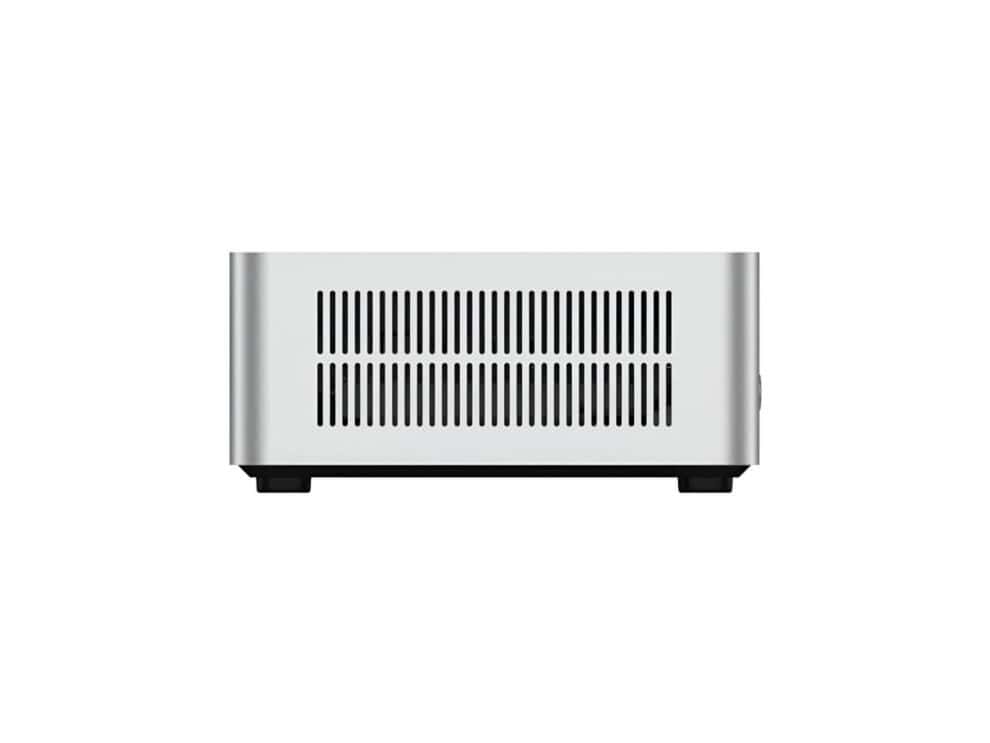

MinisForum UN1245 Intel i5-12450H Barebone

The MinisForum Venus Series Barebone Mini PC is the next step in performance in a small form factor size. It features a compact design at only 12.7 x 12.7 x 5.4 cm in size, making it ideal to fit into any small space or behind monitors for a clutter-free desk space, it’s also ideal for when not a lot of desk space is available. These versatile mini PCs come with a powerful Intel i5-12450H CPU with UHD Graphics to ensure every task is completed on time. They also support Dual DDR4 SODIMM memory with 2 slots to expand your memory as well as support for PCIe 4.0 M.2 2280 SSDs and 2.5″ SATA expansion.

The Venus Series also supports up to 3 displays thanks to its HDMI, DisplayPort, and USB Type-C output ports. For connectivity, it supports M.2 2230 Wi-Fi and Bluetooth and also comes with a 3.5mm audio jack for speakers or headphones. The MinisForum Venus Series is ideal for those looking for something compact yet powerful for various business applications, from home media servers to call centres or point-of-sale machines.

FEATURES:

• Small Form Factor Mini PC
• Intel i5-12450H processor
• 8 Cores | 12 Threads | Up to 4.40GHz
• Intel UHD Graphics for 12th Gen CPUs
• Dual DDR4 SODIMM slots x 2
• M.2 2230 Wi-Fi support for Wi-Fi 6E or Bluetooth 5.2
• Triple display support with HDMI, DisplayPort, and USB Type-C

SPECIFICATIONS:

• Processor:  Intel® Core™ i5-12450H Processor, 8 Cores/12 Threads(12M Cache, up to 4.40 GHz)
• GPU: Intel® UHD Graphics for 12th Gen Intel® Processors (Graphics Frequency 1.40/1.20 GHz)
• Memory: DDR4 Dual channel (SODIMM Slots×2, up to 64GB)
• Storage: M.2 2280 PCIe4.0 SSD
• Storage Expansion: 2.5 inch SATA HDD Slot ×1 (SATA 3.0 6.0Gb/s)
• Wireless Connectivity: M.2 2230 Wi-Fi Support (Wi-Fi 6E, Bluetooth 5.2)
• Video Output: HDMI 2.0 ×1, USB Type-C ×1, DisplayPort 1.4 ×1
• Audio Output: HDMI×1, 3.5mm Combo Jack ×1

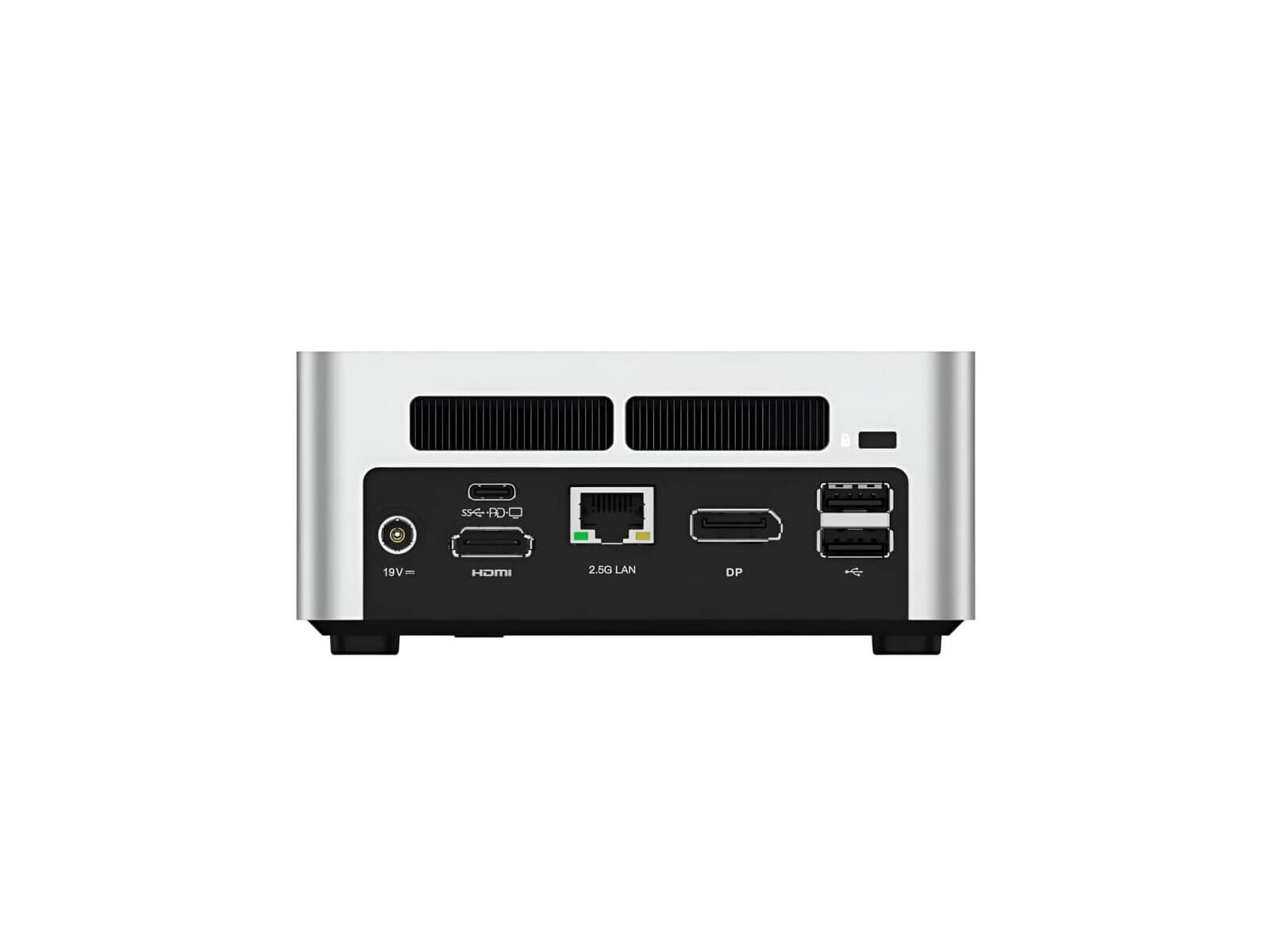

• Ports & Buttons:
  • RJ45 2.5 Gigabit Ethernet Port ×1
  • USB3.2 Type-C ×1(Alt DP and Data and PD)
  • USB3.2 Gen2 Type-A ×2
  • USB2.0 ×2
  • HDMI ×1
  • DisplayPort ×1
  • DMIC ×1
  • 3.5mm Combo Jack ×1
  • Clear CMOS ×1
• Power: DC 19V (adapter included)
• System: Windows 11 Home / Pro
• Product Dimensions: 12.7×12.7×5.4 cm
• Weight: 543g

WHAT’S IN THE BOX:

• MinisForum VENUS Series UN1245 i5-12450H Barebone Mini PC – Silver x1
• Power Cable x1
• Operating Instructions x1
