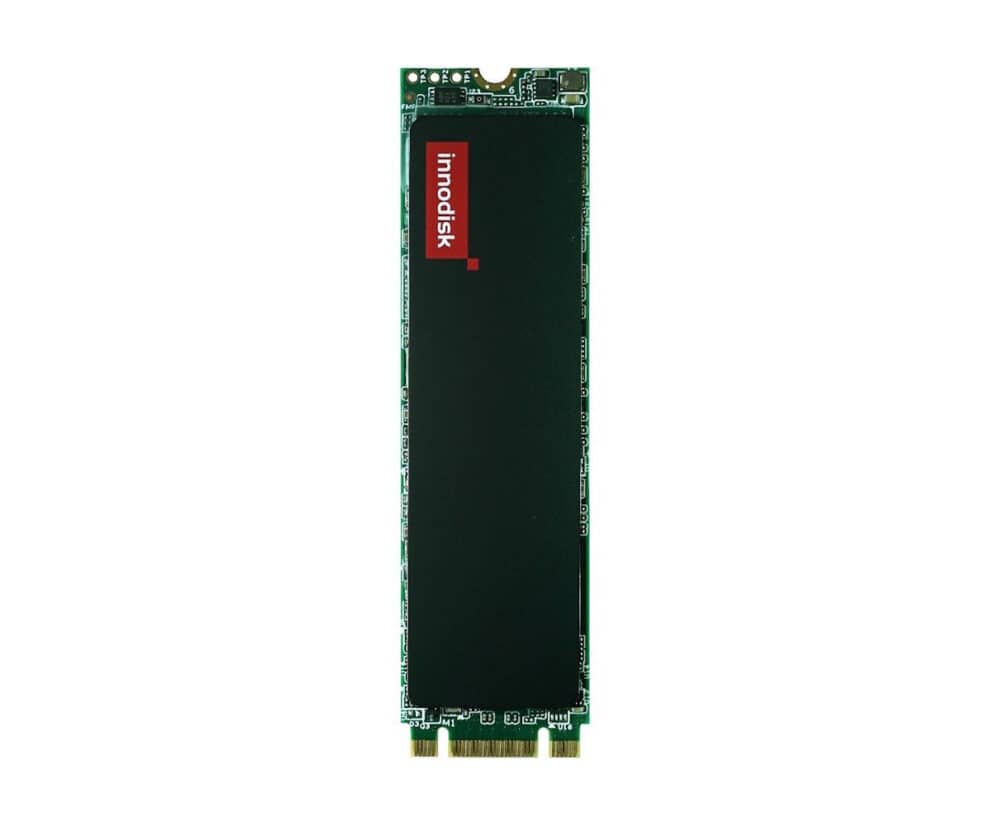

Innodisk M.2 (P80) 3TE4 B+M key is a NVM Express DRAM-less SSD designed with PCIe interface and industrial 3D TLC NAND Flash. M.2 (P80) 3TE4 B+M Key supports PCIe Gen III x 2 and it is compliant with NVM 1.3 providing excellent top and outstanding sustained performance. With sophisticated error detection and correction (ECC) functions, the module can ensure full End-to-End data path protection that secures the data transmission between host system and NAND Flash
| Interface | PCIe Gen. III x2 |
| Flash Type | 3D TLC |
| P/E cycle | 3,000 |
| Capacity | 256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/s, Max) | 1,750/1,500 |
| Max. Power Consumption (RMS) | 3.4W |
| Thermal Sensor | Yes |
| Dimension (WxLxH) | 22.0 X 80.0 X 3.0 mm 22.0 X 80.0 X 3.6 mm (with heat spreading copper layer) |
| Environment | Vibration: 20G @7~2000Hz Shock: 1500G @ 0.5ms Storage Temperature: -40°C ~ +85°C MTBF: 3 million hours |
