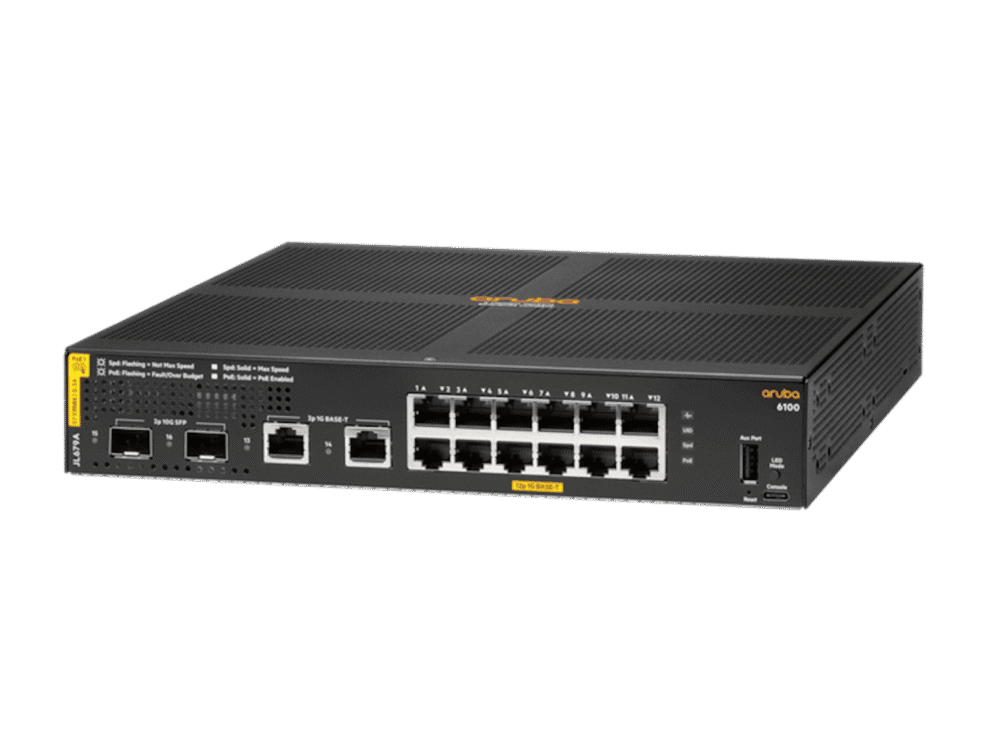

DifferentiatorThe Aruba CX 6100 Switch Series delivers entry level, reliable, and convenient Layer 2 wired access connectivity ideal for branch offices, mid-market enterprise, and SMBs. This model has 12x 10/100/1000BASE-T, 2x 1G/10G SFP ports, and 2x 1GbE ports. 139W Class 4 PoE/PoE+ power.
Power consumptionMax Power (w/o PoE): 21.9W
Max Power (w/ PoE): 170W
Input voltage100-127 VAC / 200-240 VAC
Ports12x ports 10/100/1000BASE-T Ports
2x 1G/10G SFP ports
2x 1GbE ports
Latency1 Gbps: 2.3 μSec , 10 Gbps: 2.6 μSec
Switching capacity68 Gbps
Throughput45.1 Mpps
Memory and processorDual Core ARM Cortex A9 @ 1016 Mhz
4 GB DDR3, maximum, depending on model
16 GB eMMC
PoE capability139W Class 4 PoE/PoE+
Weight2.8 kg
Dimensions4.4 x 25.4 x 25.5 cm
