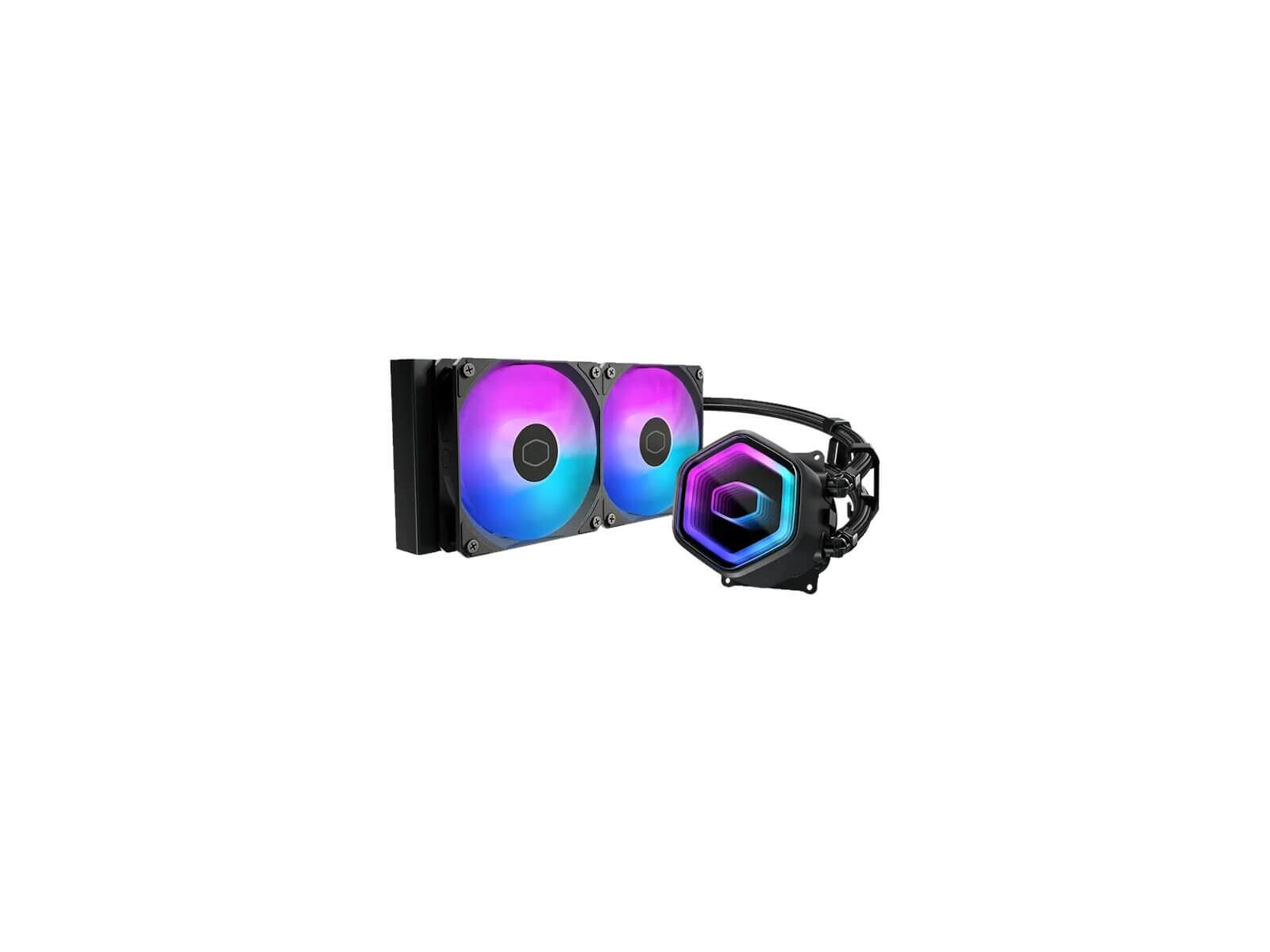

# MasterLiquid Core II Series

Introducing the redesigned MasterLiquid Core II Series from Cooler Master. Built on the trusted foundation of the MasterLiquid series, the Core II brings improved cooling performance with its upgraded dual chamber pump and wider CPU compatibility for flexible PC builds. With the infinity mirror pump cover design, upgraded fans, and optimized tubing for easy installation, the MasterLiquid Core II Series is a smart and stylish cooling solution for mainstream users looking to step up their setup.



| CPU Socket | Intel® LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156 |
| --- | --- |
| CPU Socket | AMD® AM5 / AM4 |
| Radiator Material | Aluminum |
| Radiator Dimensions | 277 x 119.6 x 27.2 mm (10.9 x 4.71 x 1.1 inch) |
| Pump Dimensions | 83.6 x 78.5 x 62.9 mm​ (3.3 x 3.1 x 2.5 inch) |
| Pump Profiles | Addressable RGB |
| Pump Speed | 2800 ±10% RPM |
| Pump MTTF | >35,000 Hours |
| Pump Noise Level | 25 dBA (Max) |
| Pump Rated Voltage | 12 VDC |
| Fan Power Consumption | 7.2 W |
| Pump Connector | 3-Pin ARGB + 4-Pin PWM |
| Tube Length | 400 mm |
| Fan Dimensions (L x W x H) | 120 x 120 x 25 mm ​ (4.7 x 4.7 x 1 inch) |
| Fan LED | Addressable RGB |
| Fan Quantity | 2 PCS |
| Fan Speed | 650 ~ 1750 RPM ±10% |
| Fan Airflow | 122.4 m³/h (71.9 CFM) (Max) |
| Fan Air Pressure | 1.86 mmH₂O (Max) |
| Fan MTTF | >40,000 Hours |
| Fan Noise Level | 27.2 dBA (Max) |
| Fan Bearing Type | Rifle Bearing |
| Fan Connector | 7-Pin PWM + ARGB |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.26 A |
| Fan Safety Current | 0.37 A |
| Fan Power Consumption | 3.12W |
