title: Asus TUF Gaming Radeon RX 9060 XT 16GB OC Edition Graphics Card
date: 2025-07-12T09:51:50Z
modified: 2026-05-05T16:49:33Z
permalink: "https://tech.co.za/product/asus-tuf-gaming-radeon-rx-9060-xt-16gb-oc-edition-graphics-card/"
type: product
status: publish
excerpt: "AMD Radeon RX 9060 XT 16GB GDDR6\\nPCI Express 5.0\\n1 x 8-pin Power Connector\\n550W Recommended PSU"
wpid: 545578
product_brand:
  - Asus
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Components
  - Graphics Cards (GPUs)
pa_graphics-card:
  - 8GB (Dedicated)
featured_image: "https://tech.co.za/wp-content/uploads/2025/07/90YV0LF0-M0NA00a.jpg"
---

| Graphic Engine | AMD Radeon™ RX 9060 XT |
| --- | --- |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR6 |
| Stream Processors | 2048 |
| Memory Speed | 20 Gbps​ |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |

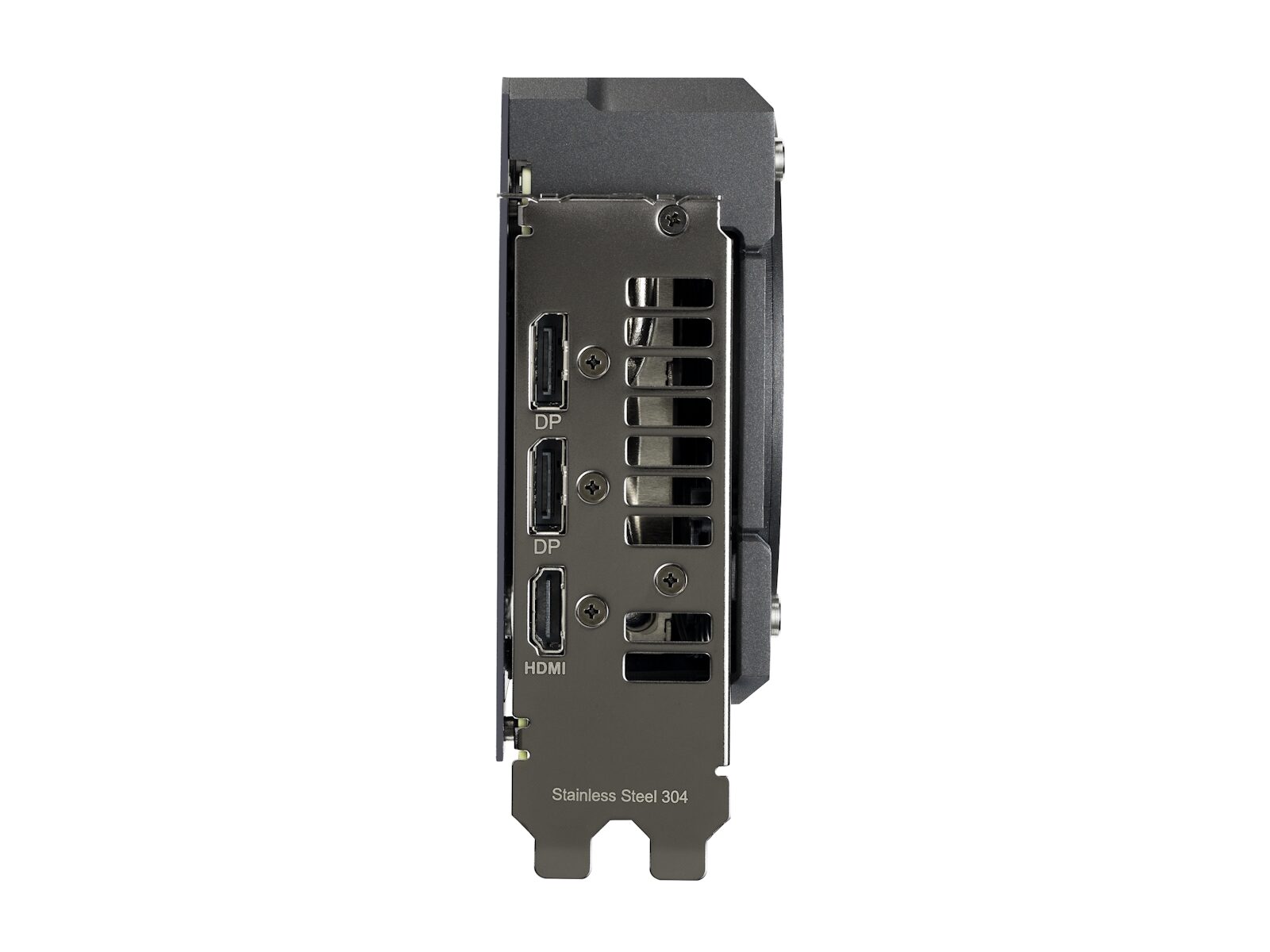

| Interface | Yes x 1 (Native HDMI 2.1b), Yes x 2 (Native DisplayPort 2.1a), HDCP Support Yes (2.3) |
| Maximum Display Support | 3 |
| NVlink/ Crossfire Support | No |
| Dimensions | 304 x 126 x 50mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| AURA SYNC | RGB |
| More info: | [https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx9060xt-o16g-gaming/techspec/](https://www.asus.com/motherboards-components/graphics-cards/tuf-gaming/tuf-rx9060xt-o16g-gaming/techspec/) |
