excerpt: "ROG Thor 1000W Platinum II is the quietest PSU in its class.\\n\\nLambda A++ Certification confirms the latest Thor wields menacing power in absolute stealth.\\nROG heatsinks cover critical components, delivering lower temperatures and reduced noise.\\nA 135mm Axial-tech fan with PWM control delivers lower noise and keeps thermals in check.\\nBuilt with 100% Japanese capacitors and other premium components to achieve 80 Plus Platinum Certification.\\nOLED display monitors power draw in real time.\\nAura Sync compatibility lets you customize and sync lighting effects with other compatible hardware."
wpid: 536781
product_brand:
  - Asus
product_type:
  - simple
product_visibility:
  - featured
  - outofstock
product_cat:
  - Components
  - Power Supplies
featured_image: "https://tech.co.za/wp-content/uploads/2025/05/90YE00L1-B0NA00a.jpg"
---

| Intel Specification | ATX12V |
| --- | --- |
| PFC Type | Active PFC |
| Dimensions | Efficiency |
| Efficiency | 80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| DC Output Voltage | +3.3V +5V +12V -12V +5Vsb |
| Maximum Load | 25A 25A 83A 0.3A 3A |
| Combined Load | 2-meter rubber cable |
| Total Output | 1000W |

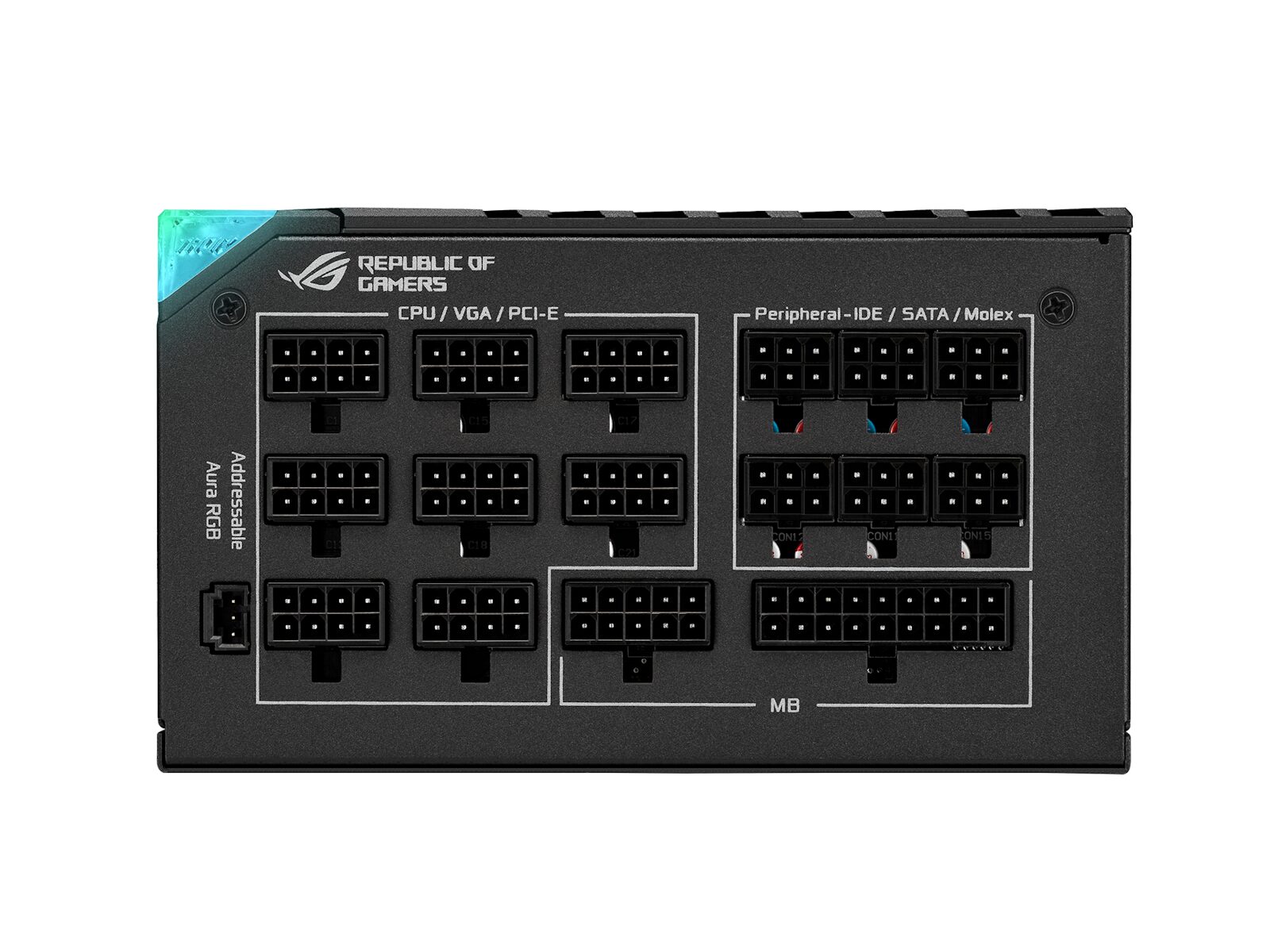

| Cable Connectors | MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (component side) PCI-E 6+2-pin x 8 SATA x 12 PERIPHERAL x 6 |
| AURA SYNC | ARGB |
| More info: | [https://rog.asus.com/za/power-supply-units/rog-thor/rog-thor-1000p2-gaming-model/spec/](https://rog.asus.com/za/power-supply-units/rog-thor/rog-thor-1000p2-gaming-model/spec/) |
