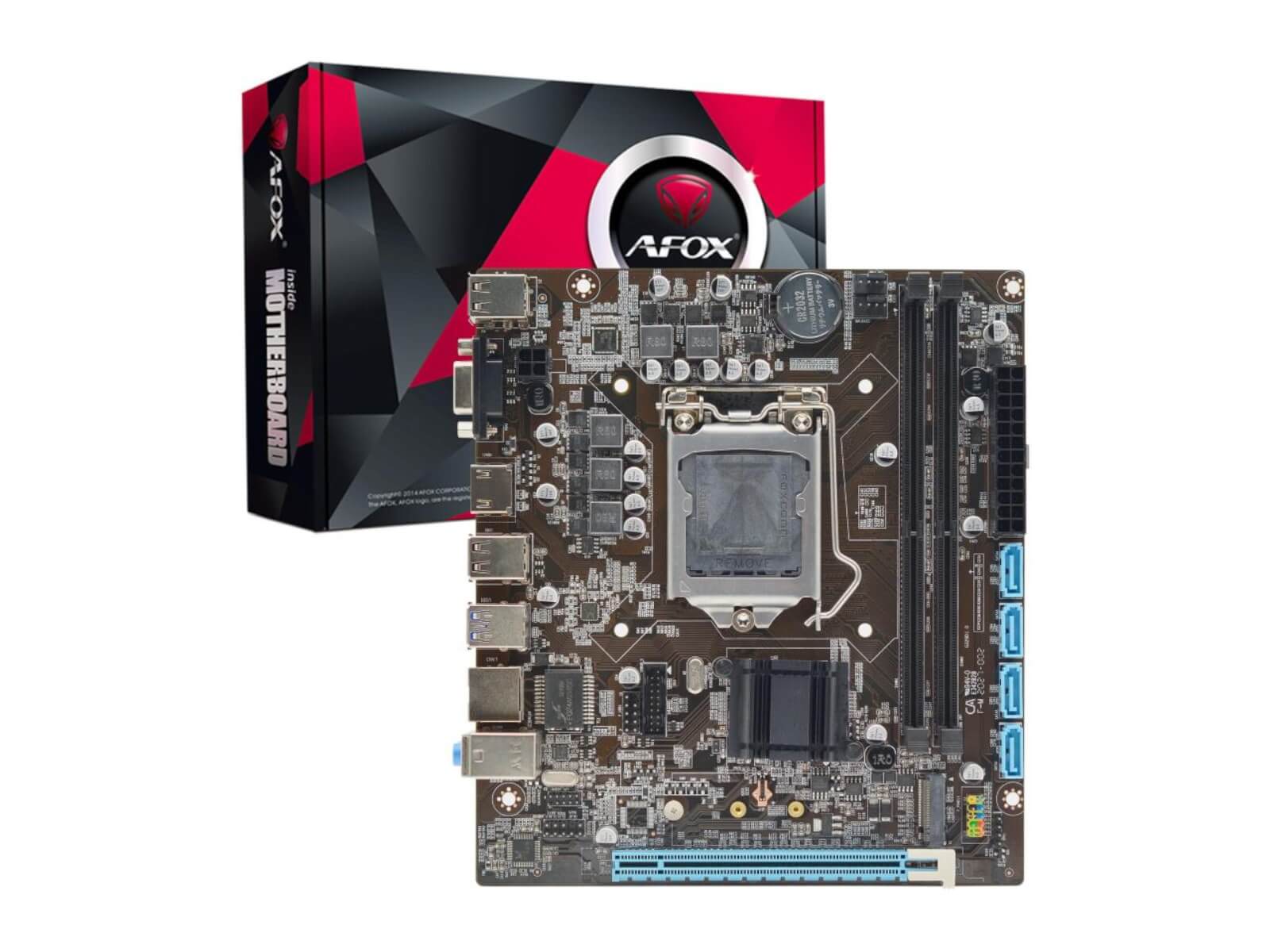

AFOX H110 1151 D4 MOTHERBOARD – IH110D4-MA2
Supports: Intel 6th, 7th, 8th and 9th Generation (CPU Up to 95 Watts)
Processor: Intel Core i7/Core i5/Core i3/Pentium /Celeron Processors
Platform: Intel Socket 1151
FSB: 2133MHz
Chipset: Intel H110 Chipset
Memory Support: Dual Channel DDR4 2133MHz (can use 2400 or 2666, but it will display abnormal)
2 x Memory Slots (Max. Capacity of System Memory 64GB)
Onboard Graphics: Integrated Graphics Processor-Intel HD Graphics Support
LAN: Realtek RTL8105/8106 10/100Mbps Ethernet On Board
Audio: Realtek 662 On Board, Supports 6-channel Audio-Out
IDE: N/A
SATA: 4 x SATA3, 1 x M.2 (PCIe NVMe Gen3 x4 )
Back Panel I/O Ports:
1 x HDMI Port
1 x D-Sub (VGA) Port
2 x USB 3.0 Ports
4 x USB 2.0 Ports
1 x RJ-45 LAN Port with LED
3 x HD Audio Jack (Line in / Front Speaker / Microphone)
ON-Board Pinheaders / Connectors: 1 x USB 2.0 Pinheader Supports additional 2 x USB 2.0 Ports
1 x USB 3.0 Pinheader Supports additional 2 x USB 3.0 Ports
1 x Front Panel Audio Pinheader
1 x LPC DEBUG
Slots: 1 x PCI Express x16 3.0 Slot
